Observe these additional precautions when operating or transporting a Tow-Behind (TBH) cart on hillsides:

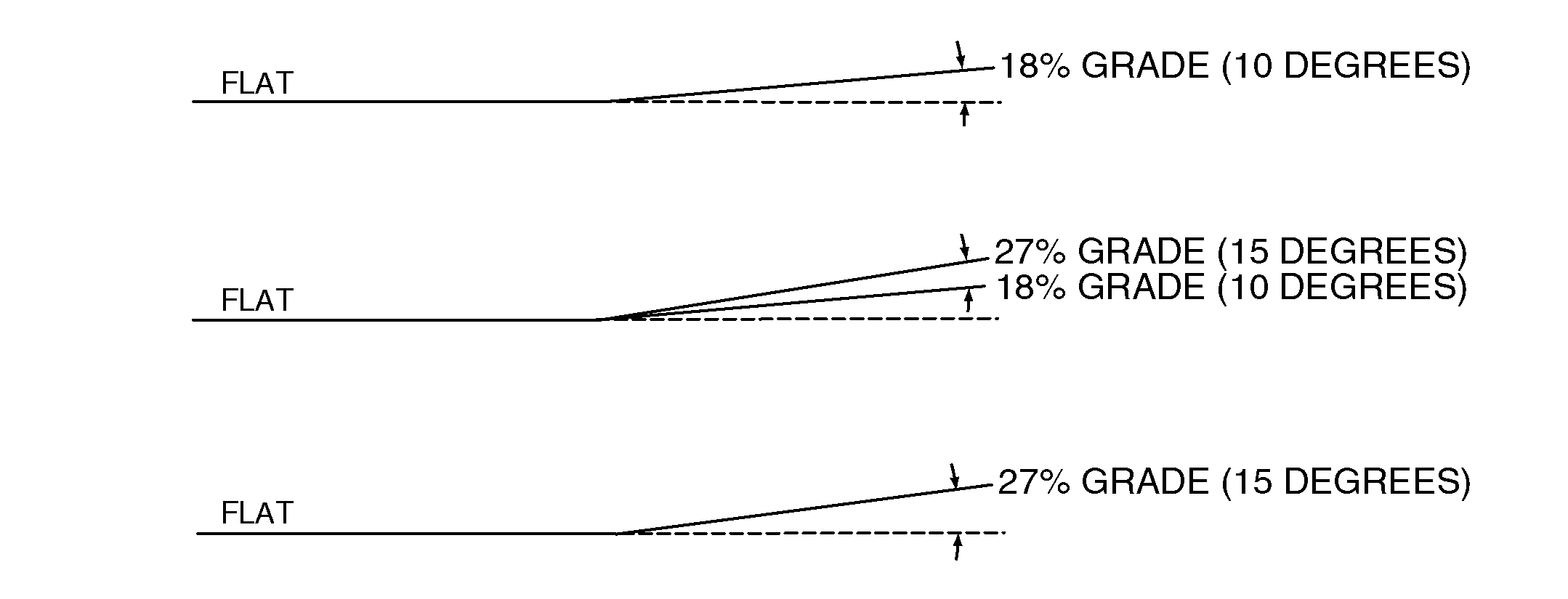

· For slopes up to 18% Grade (10 degrees):
-
Single or dual tires on the rear of the Tow-Behind cart are acceptable.
-
Total weight of the Tow-Behind cart, plus material, should not exceed 2.5 times the seeding tool weight. If an implement is towed behind the Tow-Behind cart, total weight of the cart and material, plus the weight of the towed implement, should not exceed 1.5 times the seeding tool weight.
-
Reducing fill level of all tanks improves side hill stability.
· For slopes from 18% to 27% Grade (10-15 degrees):
|
-
Equip cart with dual tires on the rear.
-
Total weight of the Tow-Behind cart, plus material, should not exceed 2.0 times the seeding tool weight. If an implement is towed behind the Tow-Behind cart, total weight of the cart and material, plus the weight of the towed implement, should not exceed 1.5 times the seeding tool weight.
-
Reducing fill level of all tanks improves side hill and transport stability.
NOTE:
Refer to Preparing the Machine section for weight charts and further information on calculations.
· For slopes above 27% Grade (15 degrees):
-
Tow-Behind carts should not be used.
|
