Removing Meter Cartridge Assembly

1. Push both Half-Width disconnect handles (A) up to block product passages to meter. Should disconnect handles feel jammed or locked-up and not operate smoothly, they can usually be "worked" free using short up-and-down strokes at the start. Working the handles loosens caked-on residue that may be preventing smooth operation.

A-Half-Width Disconnect Handles

AG,OUO6023,1042 -19-21JUL00-1/3

2. Turn lock handle (A) up, and pull forward, to release lock cam.

3. Turn meter handle (B) counterclockwise to release from lock tab (C).

4. Pull meter assembly from housing.

5. To install meter:

· Push meter into housing.

NOTE: Meter may need to be rotated slightly to engage two-point drive coupling on inner end.

· Turn meter handle clockwise to engage lock tab.

· Push in and turn lock handle down to set cam.

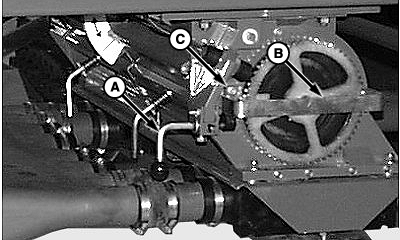

A-Lock Handle
B-Meter Handle
C-Lock Tab

AG,OUO6023,1042 -19-21JUL00-2/3

6. Pull both half-width disconnect handles (A) down to open product passages.

A-Half-Width Disconnect Handles

AG,OUO6023,1042 -19-21JUL00-3/3
