Adjusting Agitator Shaft Action

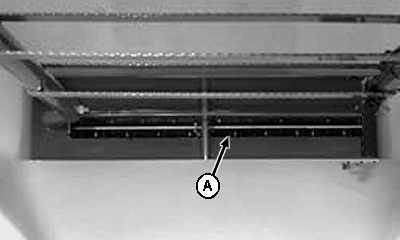

Rocking action of the agitator shaft (A) can be made more or less aggressive by changing drive arm "throw".

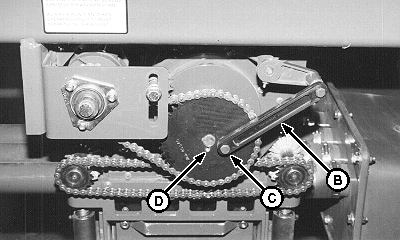

· LOW SETTING (Less Agitation)-Attach drive arm (B) to inner sprocket hole (D) for short "throw" and less agitation. Low setting is used for most products except barley, oats and forage crops.

· HIGH SETTING (More Agitation)-Attach drive arm to outer hole (C) for long "throw" and more aggressive agitation. High setting is used for barley, oats and forage crops.

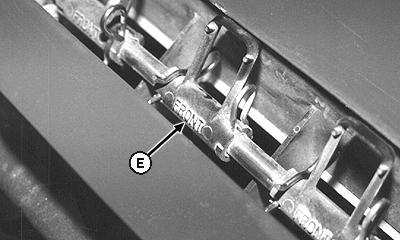

Product agitators (E) are installed only at the active runs to prevent bridging and to keep product free flowing.

A-Agitator Shaft
B-Drive Arm
C-Outer Sprocket Hole
D-Inner Sprocket Hole
E-Agitator

AG,OUO6023,1044 -19-21JUL00-1/1
