Switching Stationary Double-Shoot From Top-Shoot To Bottom-Shoot

The Stationary Double-Shoot Manifold can be easily converted between top-shoot and bottom-shoot without tools. Tank pressurization is automatically converted to the proper primary when the slide is switched from top- to bottom-shoot, or bottom- to top-shoot.

AG,OUO6023,1078 -19-21JUL00-1/4

1. Raise slide position latch pin (A) on the left end of the slide, positioning it in the center on top of the stop bracket.

NOTE: Material buildup on the slide can result with some products under moist conditions. Daily cycling of the slide is recommended when product is in the tank to keep slide free.

2. To change from top-shoot to bottom-shoot , push in slide (B) until the slide handle contacts the stop bracket.

To change from bottom-shoot to top-shoot , pull out slide (B) until the slide handle contacts the stop bracket.

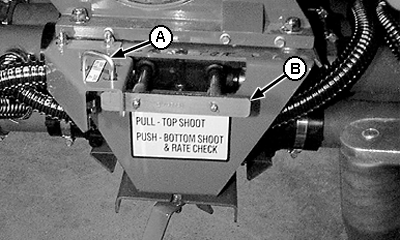

A-Latch Pin
B-Slide

AG,OUO6023,1078 -19-21JUL00-2/4

If slide cannot be moved by hand:

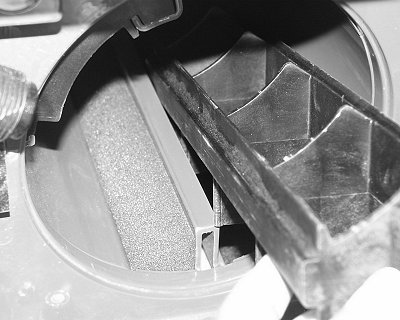

• Inspect manifold passages for foreign objects through bottom manifold plate and remove.
• Remove meter cartridge and inspect for foreign objects and remove.

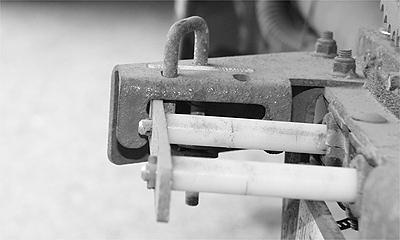

• Ensure latch pin is in unlatched position and tap lightly on ends of slide rods with plastic or rubber mallet to free slide.
• Remove hard seals and inspect for foreign objects and remove.

AG,OUO6023,1078 -19-21JUL00-3/4

3. Insert the end of the slide position latch pin in the front slot for top-shoot, or the back slot for bottom-shoot to prevent slide from moving during operation. Ensure handle is trapped between latch pin and bracket as shown.
