Adjust Stop Slide Bracket

A stop bracket is located at each end of the manifold slide assembly to protect the slide from residue and to provide a visual confirmation that the slide is properly positioned. The slide handle should contact a stop bracket at full extension and full retraction.

1. Remove left-hand and right-hand air control housings.

AG,OUO6023,1080 -19-21JUL00-1/2

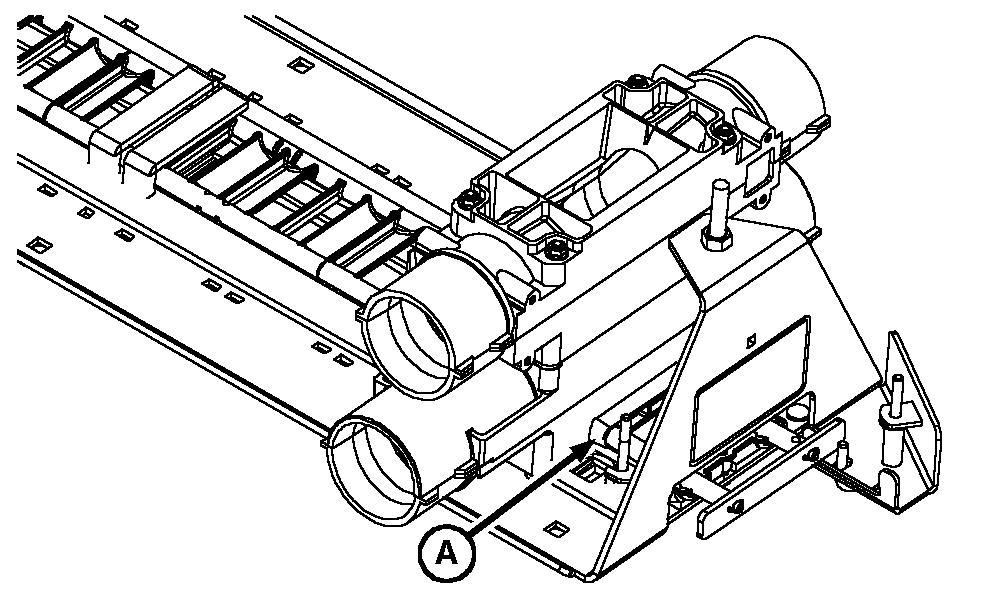

2. Fully push in slide assembly. Left-hand slide end seal (A) should be within 1 mm (0.039 in.) of contacting left-hand top manifold section when slide handle contacts stop brackets.

3. Fully pull out slide assembly. Right-hand slide end seal should be within 1 mm (0.039 in.) of contacting right-hand top manifold section when slide handle contacts stop brackets.

NOTE: When properly adjusted, insert the end of the slide position latch pin in the front slot for top-shoot , or the back slot for bottom-shoot to prevent slide from moving during operation. Ensure handle is trapped between latch pin and bracket as shown.

4. Adjust stop brackets as required.

5. Tighten bracket attaching hardware to specification.

Specification

6. Install left-hand and right-hand air control housings.

7. Tighten air control housing hardware to specification.

Specification

A-Slide End Seal

AG,OUO6023,1080 -19-21JUL00-2/2
