OMA69931: 1900 Commodity Air Cart , Block File: AG_OUO6023_1082_19

1. Ensure both disconnect handles (A) are up.

2. Perform cleanout procedures on meter and manifold.

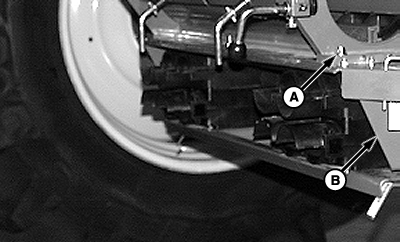

A-Disconnect Handles

AG,OUO6023,1082 -19-21JUL00-1/5

3. Remove all tank-pressure hoses (A) and hose clamps (B).

4. Remove slide assembly. See REMOVE SLIDE ASSEMBLY in this section.

5. Remove all tubes from manifolds.

6. Remove meter cartridge assembly.

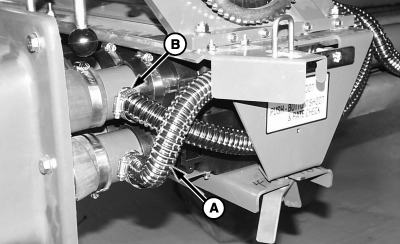

A-Tank-Pressure Hoses
B-Hose Clamps

AG,OUO6023,1082 -19-21JUL00-2/5

a. Turn lock handle (A) up and pull forward to release lock cam.

b. Turn meter handle (B) counterclockwise to release from lock tab (C).

c. Pull meter assembly from housing.

A-Lock Handle
B-Meter Handle
C-Lock Tab

AG,OUO6023,1082 -19-21JUL00-3/5

IMPORTANT: Top manifold seal must be replaced when manifold is removed.

NOTE: Plenum removed for clarity of photos.

7. Remove six carriage bolts, nuts and washers (A) and lower manifold (B).

8. Remove excess silicone from bottom of meter housing.

A-Carriage Bolts, Nuts and Washers (6 Used)
B-Manifold

AG,OUO6023,1082 -19-21JUL00-4/5

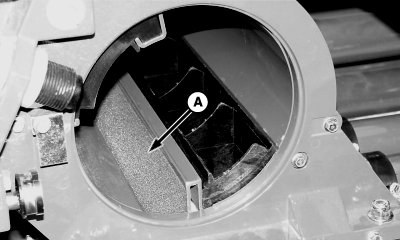

9. Remove and discard meter slot seal (A) if not already removed.
