Add/Remove Runs To Stationary Double-Shoot Manifold

NOTE: Procedures for adding or removing runs include the same steps, the only difference will be actually adding or removing runs.

NOTE: Maintenance on manifold is performed with manifold removed from cart and placed upside down.

1. Place manifold upside down on blocks and remove manifold plug tray assembly.

AG,OUO6023,1083 -19-21JUL00-1/8

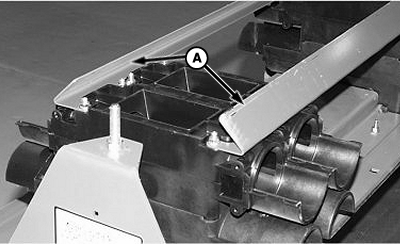

2. Remove slide panels (A).


A-Slide Panels

A45756

AG,OUO6023,1083 -19-21JUL00-2/8

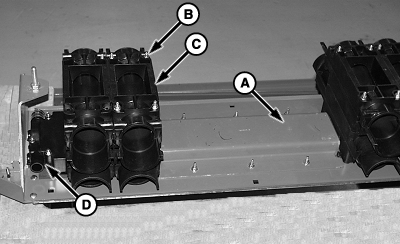

NOTE: Center plate will vary in size based on number of runs installed.

3. Remove center plate (A).

4. Remove flange nut (B) and carriage bolt from shoot assemblies (C).

5. Remove air control housing (D).


A-Center Plate
B-Flange Nut
C-Shoot Assembly
D-Air Control Housing

A45757

Four Run Manifold Shown

AG,OUO6023,1083 -19-21JUL00-3/8

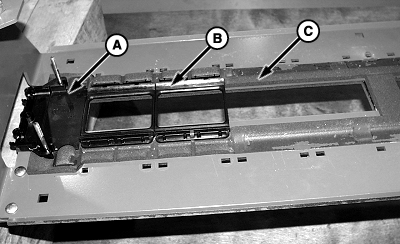

IMPORTANT: Internal manifold seal must be replaced when a shoot is added or removed.

6. Remove air manifold cover (A), shoot cover (B), and internal seal (C).

7. Install new internal seal.

8. Install air manifold cover.


A-Manifold Cover
B-Shoot Cover
C-Internal Seal

A45777

AG,OUO6023,1083 -19-21JUL00-4/8

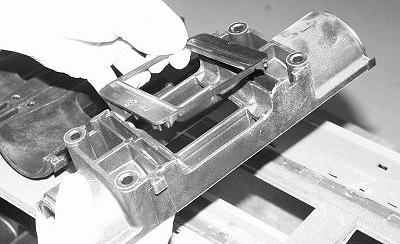

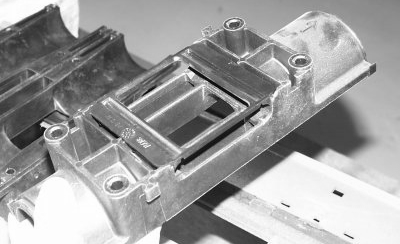

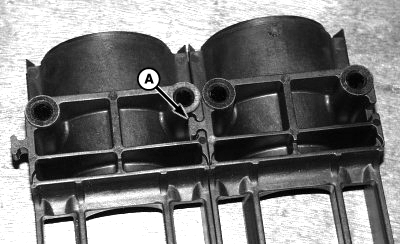

NOTE: Manifold assemblies snap fit to each other using tongue and groove (A).

9. Place shoot cover on top half of double-shoot manifold in slot provided and hold in place while attaching runs together.


A-Tongue and Groove

A45758
A45759
A45760

AG,OUO6023,1083 -19-21JUL00-5/8

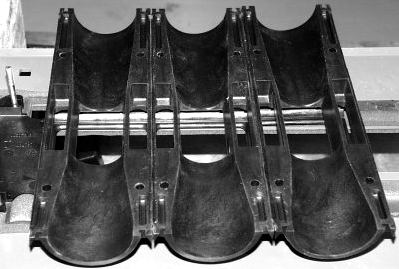

10. Position shoots on seal. Use bolt holes to verify position.

A45778

AG,OUO6023,1083 -19-21JUL00-6/8

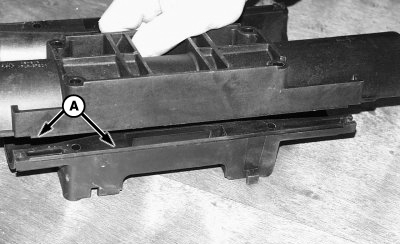

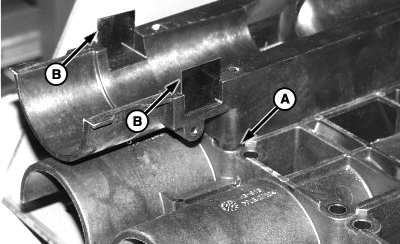

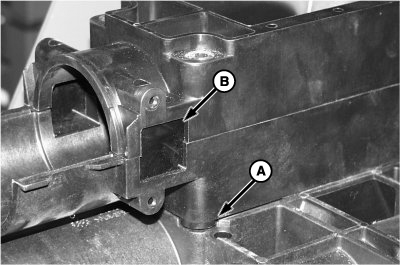

NOTE: When assembling manifold halves, ensure all tongue and grooves (A), and cross-flow inhibitor panels (B) fit properly.

11. Assemble manifolds.

12. Install air control housing.


A-Tongue and Grooves
B-Cross-flow Inhibitor Panels

A45762
A45761
A45763

AG,OUO6023,1083 -19-21JUL00-7/8

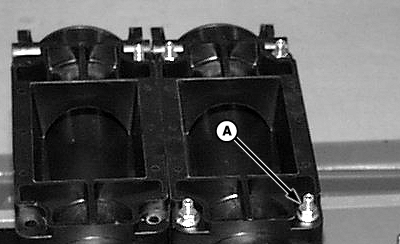

13. Secure shoot assemblies with carriage bolt and flange nut (A). Tighten to specification.

Specification

Flange Nut -Torque 5 N·m (3.7 lb-ft)

NOTE: Center plate will vary in size based on number of runs installed.

Ensure new center plates have seals attached.

14. Install center plate.

15. Install slide panels.

16. Install manifold plug tray assembly.

A45757A


A-Nut

AG,OUO6023,1083 -19-21JUL00-8/8
