Communication System Terminator

For proper operation, communications system must have two terminator(s) (A and B) installed in the CAN communication line.

When optional devices are attached (Seed Counting and/or Blockage Monitoring), passive terminator is relocated from the end of the cart CAN line to the end of the optional device(s) CAN line. Optional device CAN IN plug is connected at the open terminator plug, providing a communications interface between the optional and standard controllers.

· Passive Terminator (A):

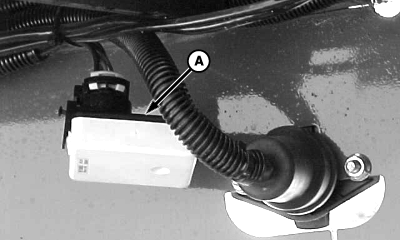

Passive terminator is installed in the end of the CAN communications line on the cart.

· Passive Terminator (B):

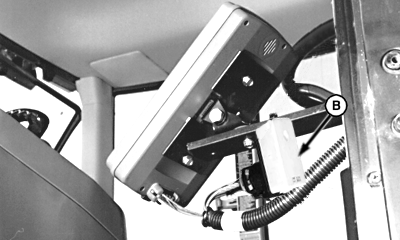

Passive terminator is installed in the tractor end of the CAN communications line, at the GREENSTAR ™ display console.

A-Terminator
B-Terminator
