GREENSTAR™ Display Start-Up

NOTE: GREENSTAR ™ display console has no on/off switch. If properly connected to power, display will come on when tractor key is turned to accessory position, or when the engine is started.

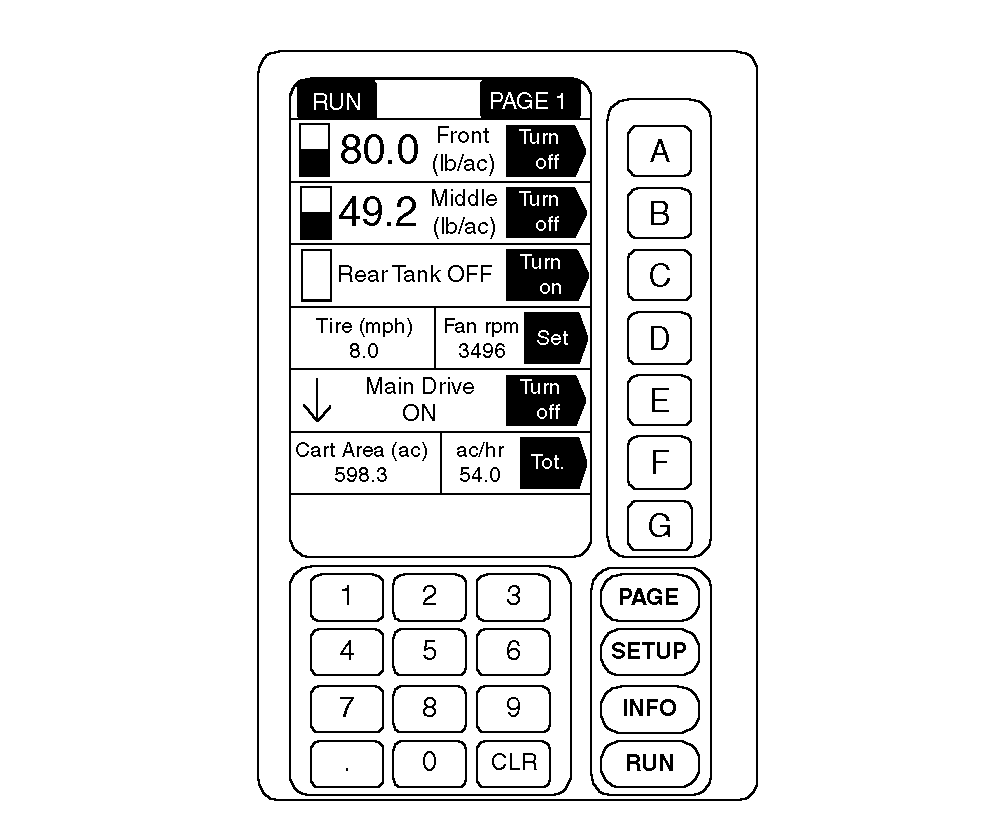

If SEEDSTAR ™ controller power and communication cable is connected, the first display seen will be Page One of Air Cart RUN MODE.

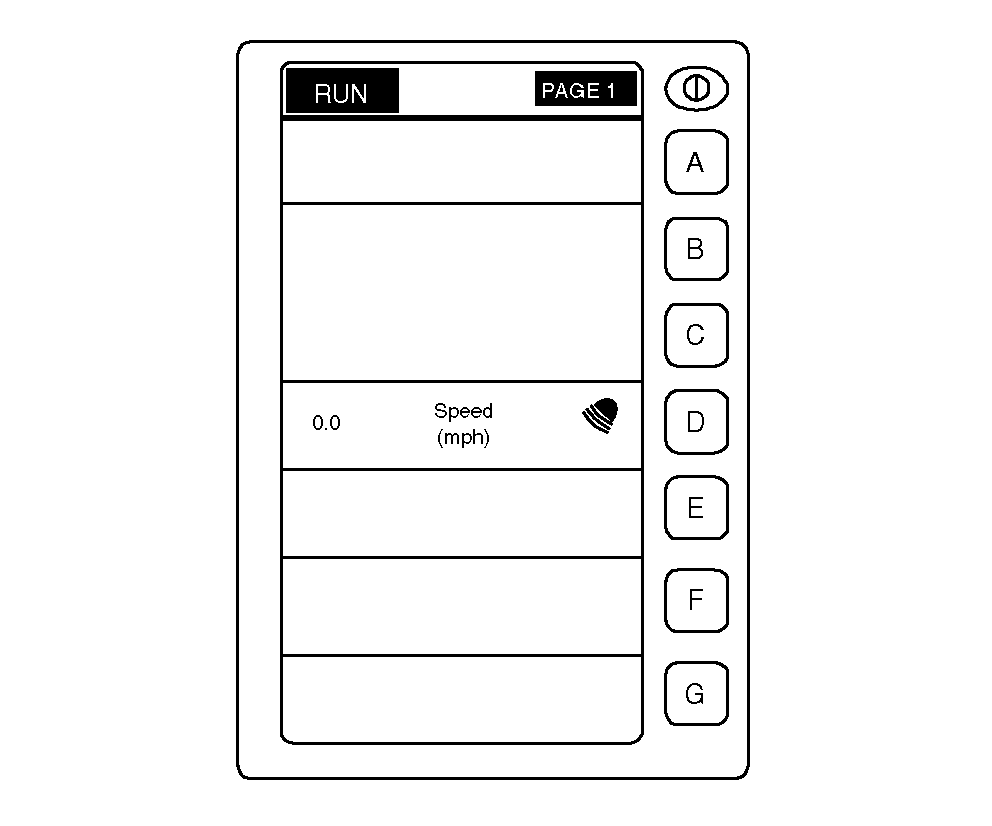

If communication cables are not properly connected, RUN screen will display radar ground speed only [0.0 km/h (0.0 mph) if standing still].

First time use will require complete system set-up as described in this section and in sections describing optional attachments. Depress SET-UP key to enter this mode.

Set-up will need to be revised and run page layout refreshed if optional devices are added or equipment changes made since last successful use. This also applies to product changes.

GREENSTAR is a trademark of Deere & Company.
SEEDSTAR is a trademark of Deere & Company.

AG,OUO6023,1090 -19-21JUL00-1/1
