IMPORTANT: Perf (Performance) Monitor is not active when connected to the 1900 Commodity Air Cart.

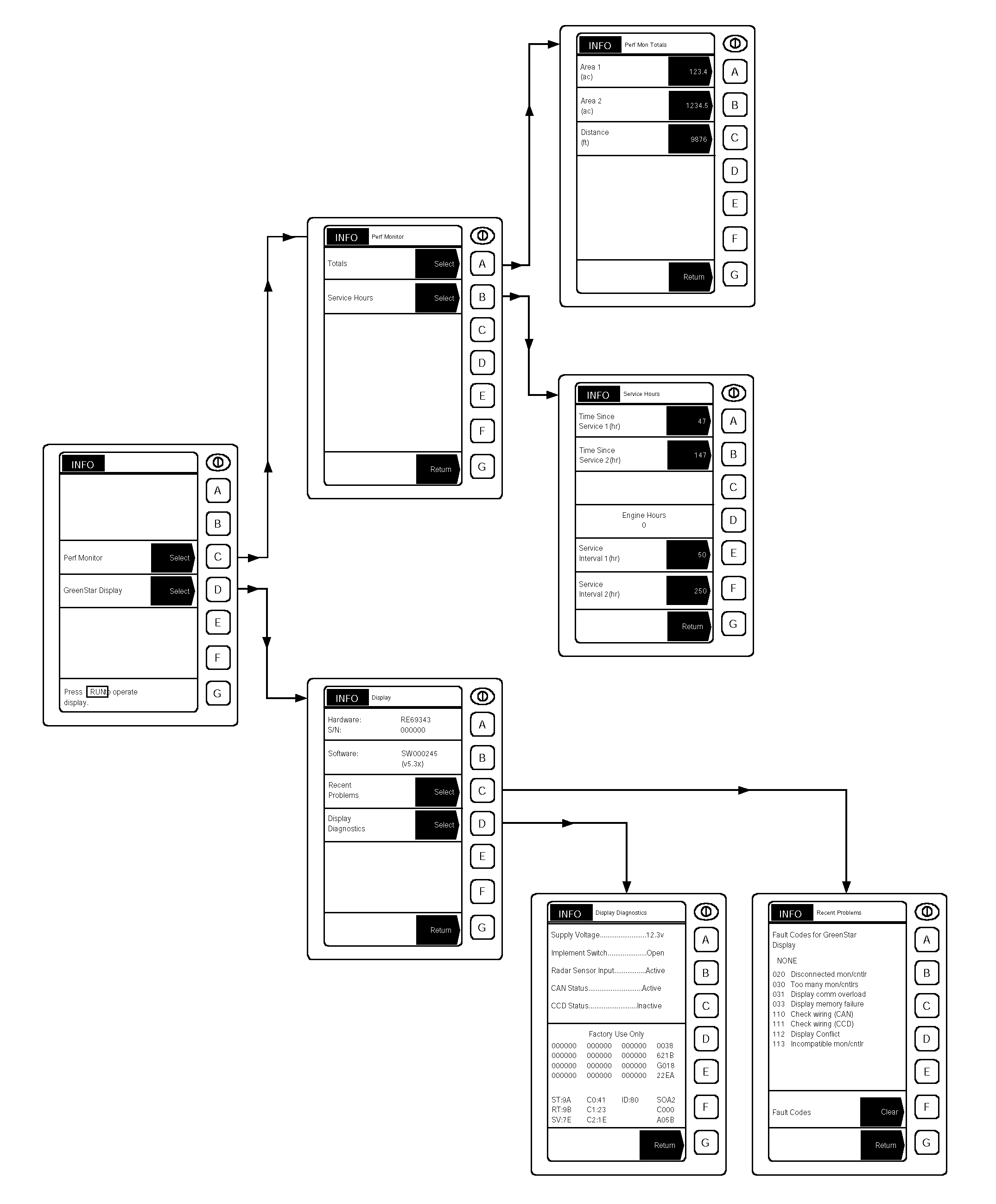

Perf (Performance) Monitor stores tractor and implement related information ONLY.

Area counters 1 and 2 can be set up for use as "field" and "farm" where field is reset to 0 (zero) after working an area and farm is allowed to accumulate total area worked. These Area counters are different than those shown in Air Cart information. Area and Distance totals are all resetable. Press related key and CLR to reset totals to 0 (zero). Use numbered keys to make new entries and press related key to record.

Service Hours (time since last and intervals) are resetable and adjustable.

When service is performed, reset "Time Since" to 0 (zero).

Service Intervals are also resetable:

• Routine tractor service is normally scheduled for 50 Hours.

• Engine service is normally scheduled for 250 Hours.

Refer to tractor operator's manual for maintenance schedule.

Engine Hours are total running hours and not resetable.

GREENSTAR ™ Display INFO reveals version number of hardware and software in use.

Recent Problems list shows the last eight display problems that produced a caution or warning message in order of occurrence. Depress key F to clear faults from problem list.

Display Diagnostics shows Supply Voltage, system connections and activity, and engineering data. Engineering data is a historical record that should not be altered.

Supply voltage can be checked if a low power problem is suspected.
