Caution Warning Messages and Reactions-Air Cart
|
|
IMPORTANT: Audio alarm will sound when a full page WARNING is displayed. If WARNING message is cancelled, audio alarm will sound again and a |
similar caution message will display at the bottom of RUN Page 1. |
| [!] Warning Message-Air Cart | Cause | Solution |
|---|---|---|

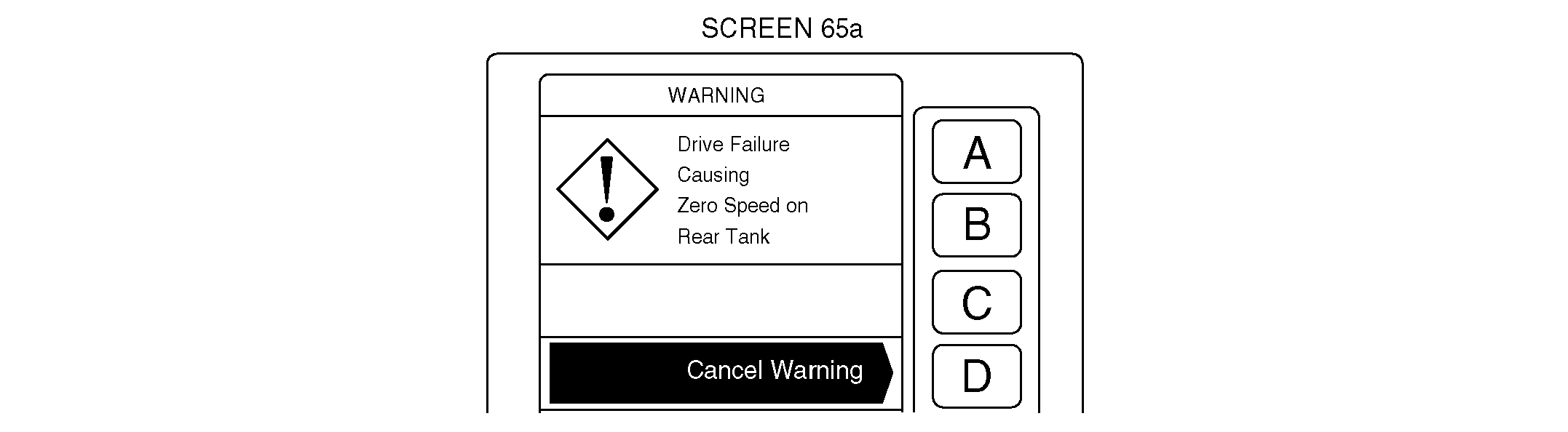

| [!] Drive Failure Causing Zero Speed At Meter | Drive tire is turning, main and meter clutches are on, but no meter speed is detected for five seconds. | Disengage clutches and stop. Check condition of meter drive shear bolt. |
| [!] Meter Clutch Off. Meter Is Turning | Meter signal is detected for five seconds but clutch is turned off. | Check that sensor jam nuts are tight. Check that meter cartridge target sprocket is tight and not vibrating. Check clutch for damage. |
|
Air Cart warning messages are coded at occurrence and added to recent problems listing. See INFO (INFORMATION) MODE, for recall and description. |
AG,OUO6023,1127 -19-21JUL00-1/1 |
