Information Warning Messages and Reactions-Air Cart

A41949

IMPORTANT: Audio alarm will sound when a full page WARNING is displayed.

If WARNING message is cancelled, audio alarm will sound again and a

similar caution message will display at the bottom of RUN Page 1.

[I] Warning Message Cause Solution
[I] Low Fan Speed Detected, Main Clutch Disengaged Fan speed below 500 rpm for five seconds with meter turning. Check and reset fan speed setting. Inspect fan speed sensor for damage or failure.
Clear warning and press "Main Drive" to reactivate clutch.



NOTE: Main clutch is deactivated when low speed warning is displayed. This allows disabling the feature until power is cycled.

[I] Tire Speed Too High For Good Performance Tire speed exceeds 16 km/h (10 mph) with main clutch and at least one meter clutch engaged. Slow to recommended speed for best performance.

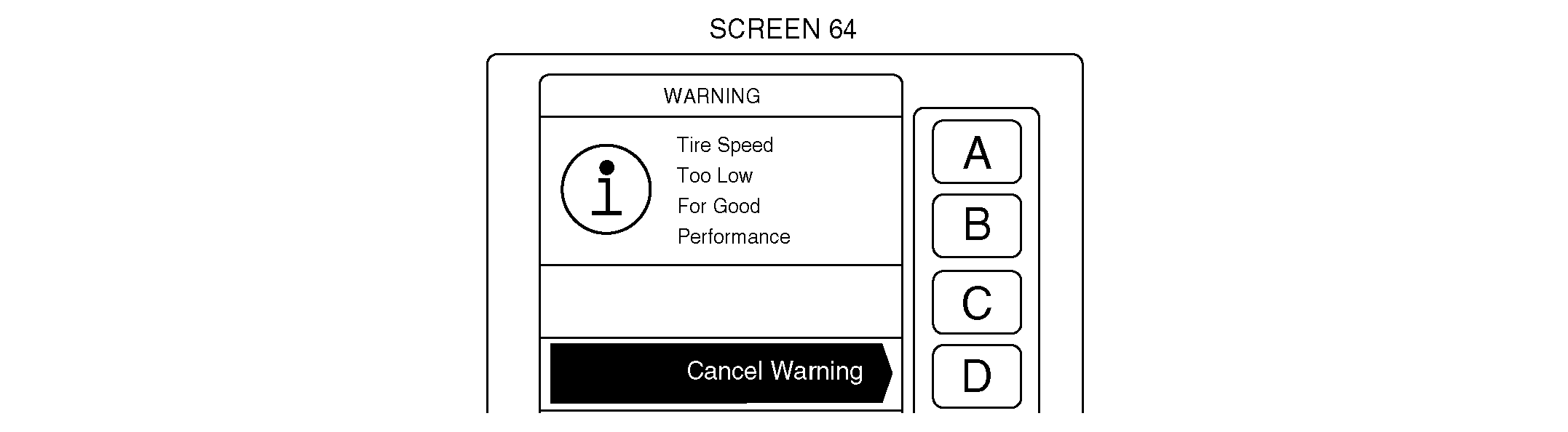

[I] Tire Speed Too Low For Good Performance Tire speed below 1.5 km/h (1 mph) with main clutch on. Disengage main clutch or increase speed.



NOTE: Low speed warning and caution messages will disable below 0.5 mph.

[I] Clutch Slippage or Transmission Setting Error (Normal to occur while making large rate adjustments with variable rate.) Actual application rate is +/- 15% of target rate for 60 seconds. Stop and check application rate and transmission setting. Check clutch for slippage.
[I] Tire Speed Inconsistent With Radar Speed Tire speed and radar speed differ by more than +/- 10% for 60 seconds. Stop travel. Recalibrate tire speed sensor and radar speed sensor.
[I] Tire sensors need to be calibrated. Uncalibrated Calibrate Sensors



AG,OUO6023,1128 -19-21JUL00-1/2


NOTE: WARNING messages are coded at occurrence and added to recent problems listing. See

INFO (INFORMATION) MODE for recall and description.

[I] Invalid Configuration. Meter cannot feed top and bottom primaries. Only the top OR bottom primary can be associated with one meter at a time. Choose the desired primary (top or bottom) and choose not feeding for the other.



AG,OUO6023,1128 -19-21JUL00-2/2
