Informative Caution Messages and Reactions-Air Cart
|
|

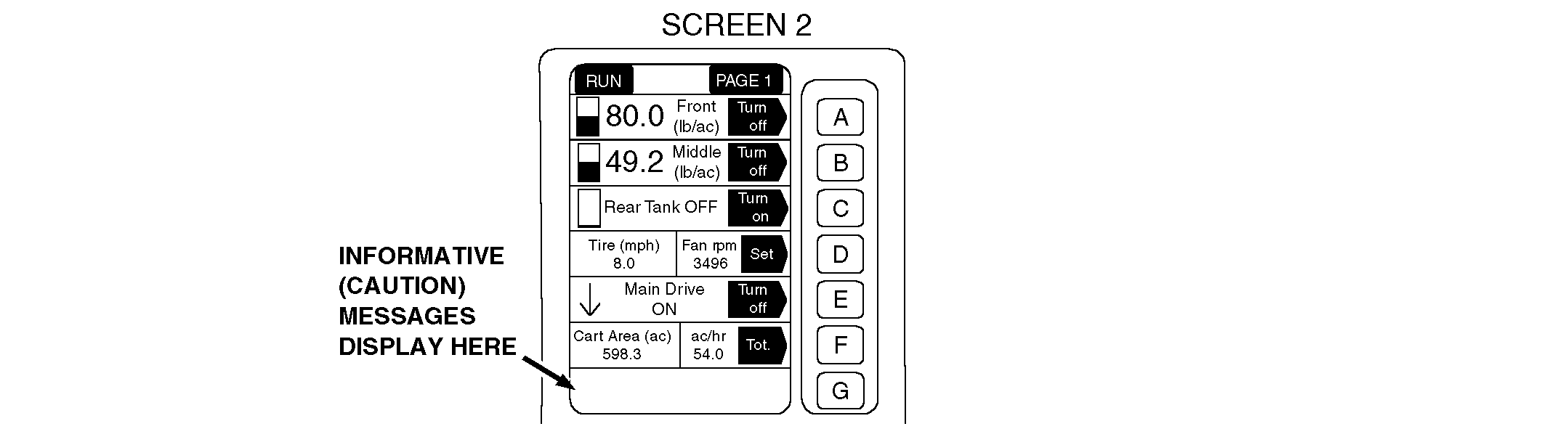

Informative (caution) messages display at the bottom of RUN Page 1 and are advisory in nature. Message will remain on screen until corrective action is taken. |
| Caution Message-Air Cart | Cause | Solution |
|---|---|---|
| Tank Almost Empty | Bottom sensor open and meter is active. | Stop and fill tank(s). |
| Fan Speed Outside Limits | Fan Speed not within +/- 15% of target speed for 15 seconds. | Adjust fan speed or reset monitor with new speed setting. |
| Transport Mode- (NOTE: Tire Speed and Application Rates Show 0 (ZERO). | Tire Speed exceeds 40 km/h (25 mph). | Come to complete stop 0 km/h (0 mph) to reset displays. |
AG,OUO6023,1129 -19-21JUL00-1/1 |
