Informative Caution Messages and Reactions-Blockage Monitor
|
|

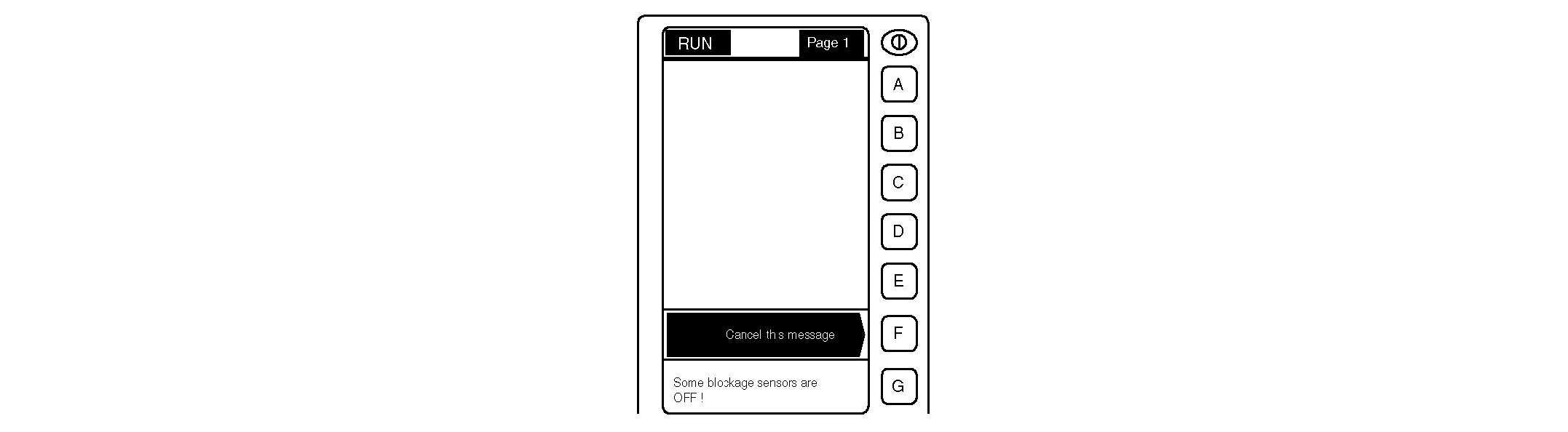

Informative (caution) messages display at the bottom of RUN Page 1 and are advisory in nature. Message will remain on screen until corrective action is taken. |
NOTE: In SET-UP or INFO modes, these same messages will display as full page information warnings (shown with [i] icon). |
| Caution Message-Blockage Monitor | Cause | Solution |
|---|---|---|
| Some blockage sensors are OFF! | One or more sensors are turned off. | Press SET-UP and turn sensors ON. |
| Some blockage sensors are being ignored! | One or more sensors are being ignored. | Turn clutches off and on to reactivate sensor(s). |
| Some blockage modules are being ignored! | One or more blockage modules are being ignored. | Turn clutches off and on to reactivate module(s). |
| Too many headers fed by BOTTOM/TOP primaries! (All Run). | More than eight headers are configured for a primary bank. | Correct air system configuration errors in blockage set-up to clear. See Set-Up Mode, Blockage Monitoring Systems. |
| Too many sensors fed by BOTTOM/TOP primaries! (Primary ONLY.) | More than eight sensors are configured for a primary bank. | Correct sensor/header configuration error in blockage set-up to clear. See Set-Up Mode, Blockage Monitoring Systems. |
| Too many blockage slaves on leg X. | Connected too many modules to one leg of splitter harness (maximum per side is 8). NOTE: Message clears if slave configuration is accepted or returned to previous configuration. | Correct slave module location and wiring error. |
AG,OUO6023,1132 -19-21JUL00-1/1 |
