Operating Tank Lids

IMPORTANT: Product metering will be adversely affected if tank is not sealed tightly. If the tank is not pressurized, product will not meter properly.

When closing tank lids, perform the following steps to ensure that tank is properly sealed:

1. Wipe product overflow, if any, from lid seal.

2. Inspect lid seal.

3. Rotate lid over opening until it contacts stop.

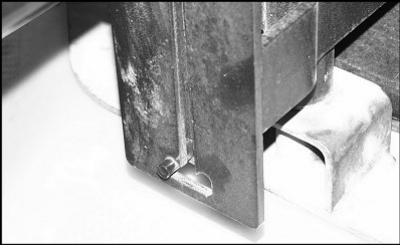

4. Make sure lid is not clamped down on lid centering brackets.

AG,OUO6023,1167 -19-21JUL00-1/2

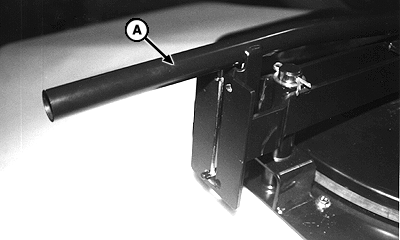

5. Push down on handle (A) to lock lid in "J" slot as shown.

A-Handle

AG,OUO6023,1167 -19-21JUL00-2/2
