Auger Control Valve

Rotary variable speed control valve is mounted on top of the auger tube for convenient operator access when filling or emptying tanks. Hydraulic oil is supplied to the valve from the tractor's SCV, through the fan/auger selector valve.

AG,OUO6023,1172 -19-21JUL00-1/2

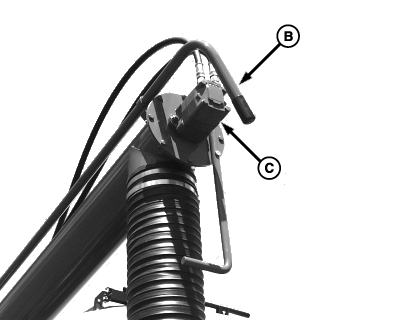

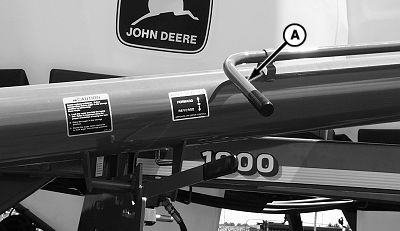

Levers (A) and (B) control oil delivery to the bi-directional motor (C) located at the outlet end of the auger tube. With lever in center position, valve is in neutral.

Rotating the lower lever (A) up rotates the auger, moving product up the tube to the outlet hose.

Rotating the lower lever down reverses oil delivery to the motor, moving product down the tube, back to the hopper for emptying.

The control valve can also be operated from the outlet end, using upper lever (B). Rotating down on the handle brings product up the tube to the outlet hose. Rotating up on the handle reverses oil delivery to the motor, moving product down the tube, back to the hopper for emptying.

A-Lower Lever
B-Upper Lever
C-Bi-Directional Motor
