Before and After Each Season

Lubricate each of the following points before each operating season and after each season when placing machine in storage. Apply oil or grease as indicated on the symbol.

AG,OUO6023,1188 -19-21JUL00-1/2

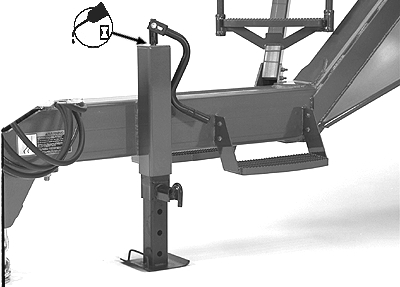

A40116A

Tow-Between Hitch Jack

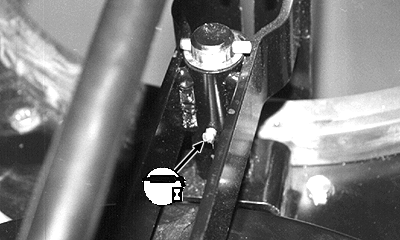

A40117B

Tank Lid Pivot-All

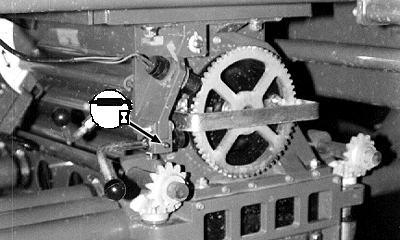

A41507B

Meter Lock Levers-All

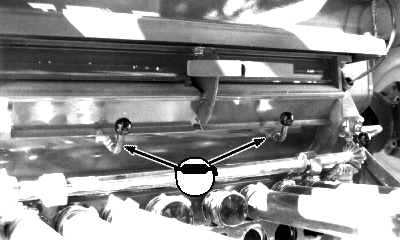

A41508

Cleanout Panel Levers-All

AG,OUO6023,1188 -19-21JUL00-2/2
