Tightening Hardware

Check the tightness of ALL BOLTS, U-BOLT AND CAP SCREW NUTS after the first 10-15 hours of operation, and again at the end of the first week (50 hours) of operation. Tighten all bolts to the torques specified in the Service section unless otherwise noted.

AG,OUO6023,1217 -19-21JUL00-1/2

Check tightness of all hardware periodically, giving special attention to the rear axle mounting bolts (A) on all carts. When equipped with dual rear wheels, both the rear axle mounting bolts and frame extension mounting bolts must be checked and torqued. Torque of hitch attaching fasteners found at the rear of a tow-between cart must also be given special attention. This hardware must be kept torqued to the listed specification to prevent machine damage.

Rear Hitch Hardware-Tow Between
Location (Size) Torque
Link Ends (M24) 720 N·m (530 lb-ft)
Hitch Plates (M12) 90 N ·m (65 lb-ft)



Rear Hitch Hardware-All Machines
Location (Size) Torque
Rear Axle Mounting Bolts (M20) 675 N·m (500 lb-ft)
Frame Extension Bolts (Dual Wheels) 675 N·m (500 lb-ft)



Rear Hitch Hardware-Tow Behind
Location (Size) Torque
Field Hitch Bolts (M25) 720 N·m (530 lb-ft)

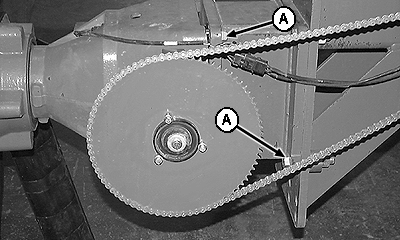

A42792

Cart With Frame Extensions


A-Mounting Bolts
