Checking Wheel Attaching Hardware and Bearings

Check the tightness of all wheel hardware and front wheel bearings (tow-behind) during the first week of operation, and annually after that.

To adjust front wheel bearings on tow-behind cart, remove center hub cap and cotter pin. Raise the wheel and turn it. Tighten the nut until there is a slight drag on the bearings, back off to the first hole, and insert cotter pin. Replace hub cap.

AG,OUO6023,1220 -19-21JUL00-1/2

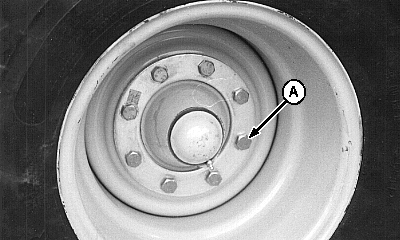

Tow-Behind Carts: Tighten front wheel bolts (A) to specification.

Specification

Front Wheel Bolts -Torque 200 N·m  (150 lb-ft)


A-Wheel Bolt

A41568A

AG,OUO6023,1220 -19-21JUL00-2/2
