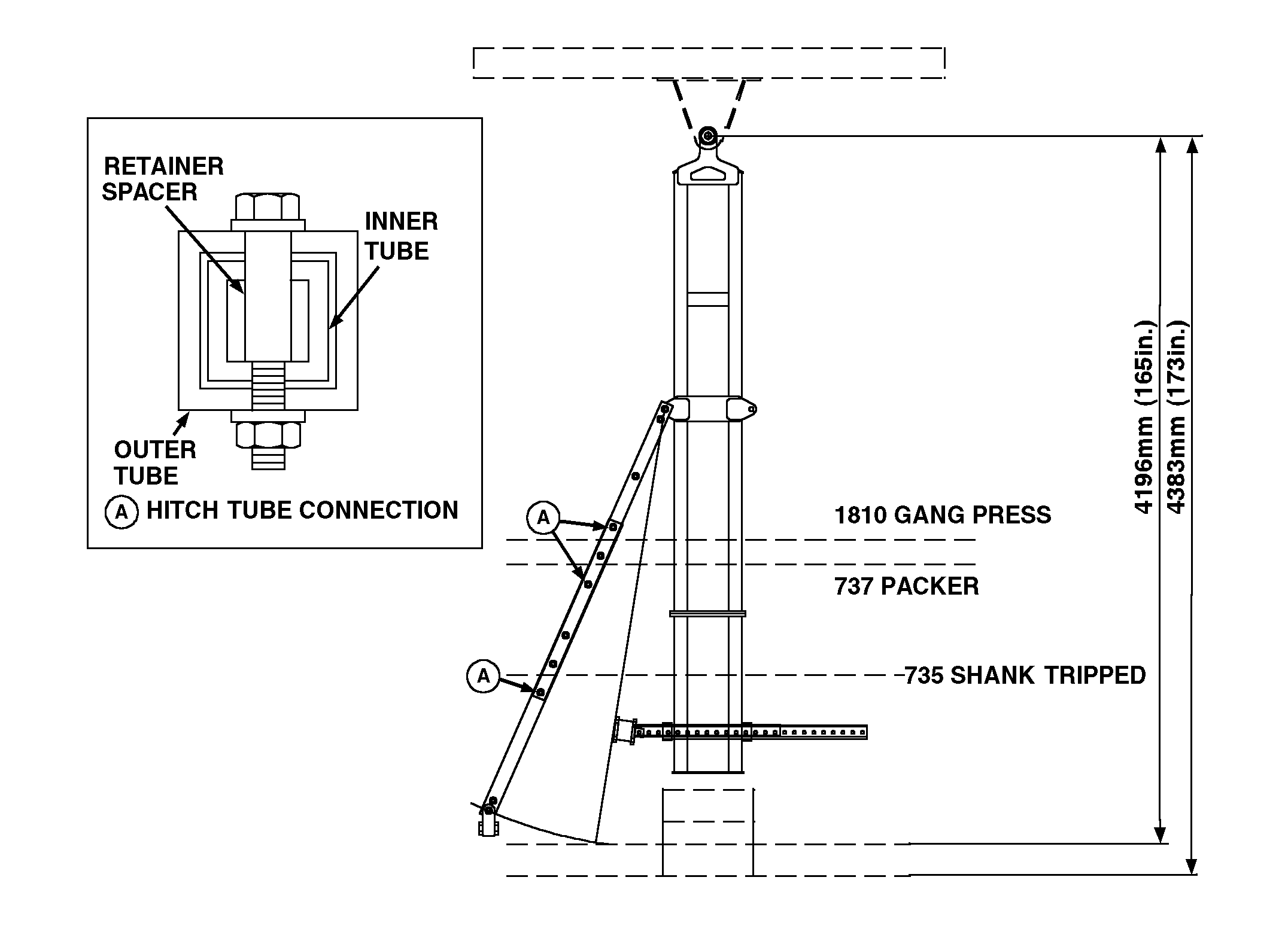

Field Hitch Diagram-737 and 735/1810 With Attachments

A42114A

Mid-Length Tube Settings

1. Reset hitch tubes to mid-length setting.

2. Install hitch frame extension.

AG,OUO6023,1243 -19-21JUL00-1/1
