Prepare Field Hitch-Tow-Behind Carts

NOTE: Following steps are taken to adjust hitch tubes to mid-length or long-length applications.

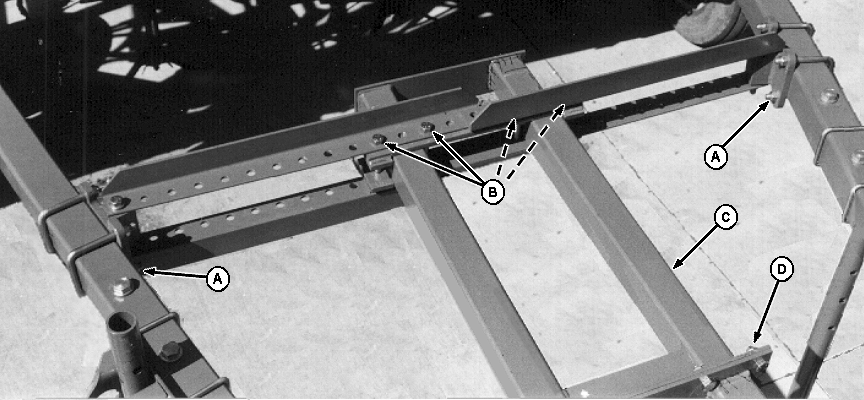

1. Loosen or remove support-to-hitch tube (outer end) hardware (A).

2. Remove support-to-hitch frame (inner) hardware (B).

3. Attach frame extension (C) to hitch frame using eight M16 x 35 cap screws and lock nuts (D).

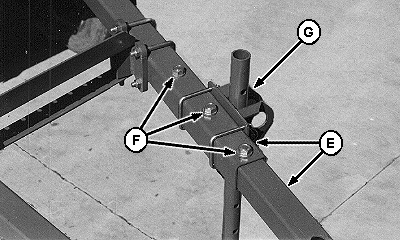

4. Remove hardware and extend hitch tubes (E) to mid-length or long-length positions as shown on applicable diagram.

5. Align tube holes (F) and install hardware only in positions shown on diagram.

6. Position cross-support brackets to end of frame extension and loosely install inner hardware. Cross support will need to be reset when hitch tubes are spread to align with rear bar brackets on seeding tool.

7. If needed, relocate storage stands (G) closer to tube ends. Storage stands support hitch tubes when disconnected from seeding tool.
