Attach Tow-Behind Hitch Brackets

IMPORTANT: Hitch brackets should be installed equal distances from the machine centerline. Bracket locations will be different for each machine due to opener locations (row spacings) and interference with rear bar components.

NOTE: Leave hardware loose until instructed to tighten.

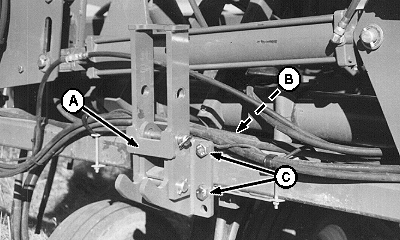

Attach hitch brackets (A) to rear frame bar, equal distances from machine centerline, using straps (B), M24 x 200 cap screws (C) and lock nuts.

A-Hitch Brackets
B-Straps
C-Cap Screws and Lock Nuts

AG,OUO6023,1246 -19-21JUL00-1/1
