Positioning Drawbar

CAUTION: When transporting machine, avoid personal injury or death due to losing steering control of machine. Always pin drawbar in center position for ALL tractors.

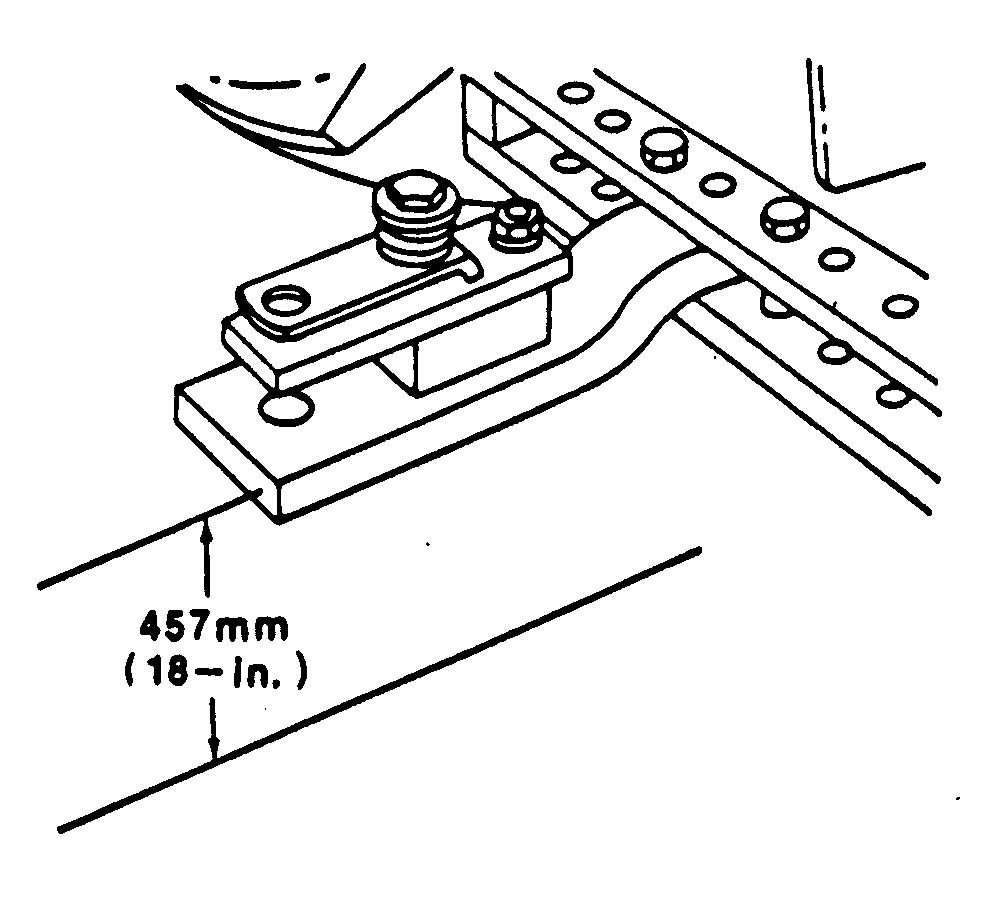

1. Set drawbar at short length, fixed centered position, as close as possible to 457 mm (18 in.) from ground to top of drawbar.

2. Be sure clevis assembly (if equipped) is installed on top of drawbar.

NOTE: For four-wheel drive tractors, leave one hole clearance on each side of drawbar for field operation only.

3. Tighten clevis assembly bolts to specification.

Specification
