Preparing Hydraulic System-Tractors With Mechanical SCV Controls

1. Check hydraulic oil level. Fill, if necessary.

AG,OUO6023,976 -19-21JUL00-1/2

NOTE: Tractor hydraulic oil flow must be between 53-76 L/min (14-20 gpm) for proper operation of the machine.

2. Turn No. 1 and No. 2 metering valves (A) to fast operation for depth control and wing fold.

3. Metering valve No. 3, No. 4 or No. 5 will be used for air cart fan speed control. Refer to SETTING FAN SPEED in Operating the Machine - Monitor Operation section.

4. Install forward lever lock clip on No. 3, No. 4 or No. 5 tractor control lever for fan ON/OFF control. Installation Instructions are provided in Lever Lock Bundle.

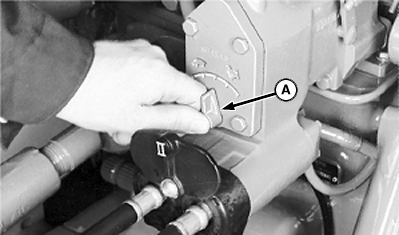

RW5885


A-Metering Valves
