Install GREENSTAR™ Display-60-70 Series Four-Wheel Drive Tractors

1. Install bracket to inside of cab (right-hand front rear window) with two M10 x 25 cap screws (A).

A-Cap Screws, M10 x 25 (2 Used)

GREENSTAR is a trademark of Deere & Company.

AG,OUO6023,984 -19-21JUL00-1/10

2. Attach monitor bracket to pivot with M10 x 60 cap screw and nut (A).

3. Attach bracket to monitor with two M6 x 16 cap screws (B).

4. Install monitor to mounting bracket with M6 x 20 cap screw and nut (C) making certain to install rubber washer on top of strap at mounting.

A-Cap Screw, M10 x 60, and Nut
B-Cap Screws, M6 x 16 (2 Used)
C-Cap Screw, M6 x 20, and Nut

AG,OUO6023,984 -19-21JUL00-2/10

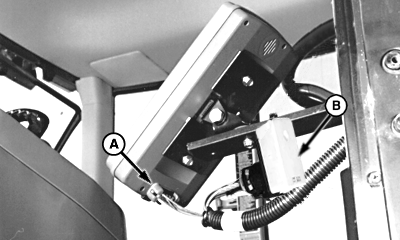

5. Install lead end from monitor harness (A) into monitor.

6. Fasten terminator (B) to underside of mounting bracket with tie strap.

A-Monitor Harness
B-Terminator

AG,OUO6023,984 -19-21JUL00-3/10

NOTE: If tractor is not equipped with a convenience outlet or 6 pin program connector, order BA28418, Voltage Suppression bundle.

Bundle can be used to install a voltage protected convenience outlet in tractors built by other manufacturers.

Refer to instructions included with bundle for wiring details.

7. Connect monitor harness lead to convenience outlet (A).

NOTE: Early 60 Series 4WD have 2-pin convenience outlet. Order Power Adapter (AA37254) (B) to convert to 3-pin convenience outlet.

A-Convenience Outlet
B-Power Adapter

AG,OUO6023,984 -19-21JUL00-4/10

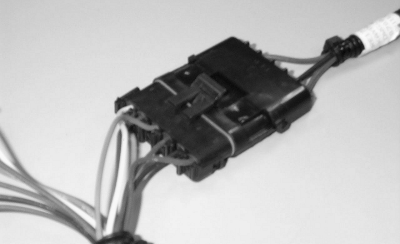

8. Connect 6-pin connector.

AG,OUO6023,984 -19-21JUL00-5/10

9. Install two grommets into plate (A), making certain plate openings are DOWN.

10. Attach plate (A) to tractor cab with six 5/16 x 7/8 in. screws (B).

A-Plate
B-Screws, 5/16 x 7/8 In. (6 Used)

AG,OUO6023,984 -19-21JUL00-6/10

11. Route harness under floor mat along side of right-hand console.

12. Route harness under cab. DO NOT let excess harness hang loose.

13. Connect extension harness to harness from cab. Fasten connectors under right-hand rear corner of cab with nylon ties as required.

AG,OUO6023,984 -19-21JUL00-7/10

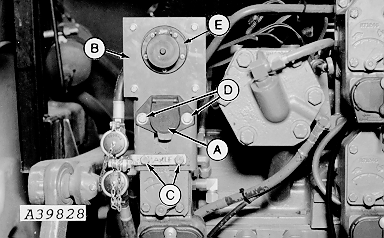

14. Install 7-pin connector (A) through slot in bracket (B).

15. Mount bracket (B) (legs to front) to tractor SCV with two cap screws (C) previously removed.

16. Install two cap screws (D) and nuts previously removed through connector (A) to bracket (B).

17. Install plug assembly (E) on bracket (B) with M6 x 16 screws.

A-7-Pin Connector
B-Bracket
C-Cap Screws
D-Cap Screws
E-Plug Assembly

AG,OUO6023,984 -19-21JUL00-8/10

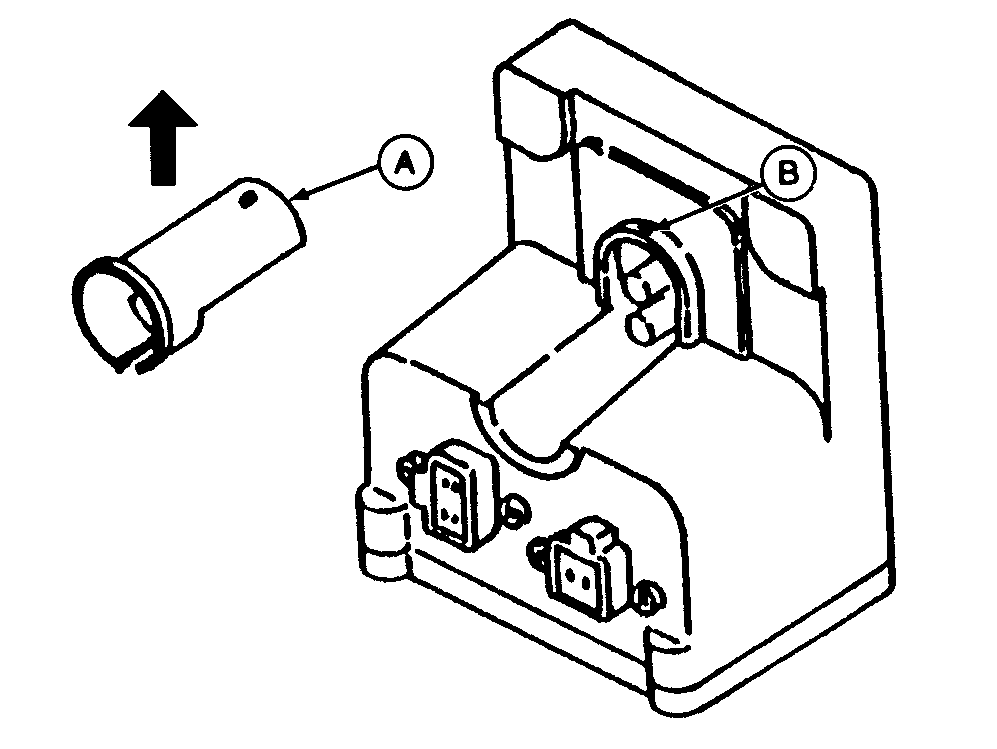

NOTE: Cover (A) for 4-pin connector can be removed to simplify connection of red and black wires to terminals.

18. To remove cover, lift rear portion to remove from pin (B), then lift straight up in direction of arrow.

A-Cover
B-Pin

AG,OUO6023,984 -19-21JUL00-9/10

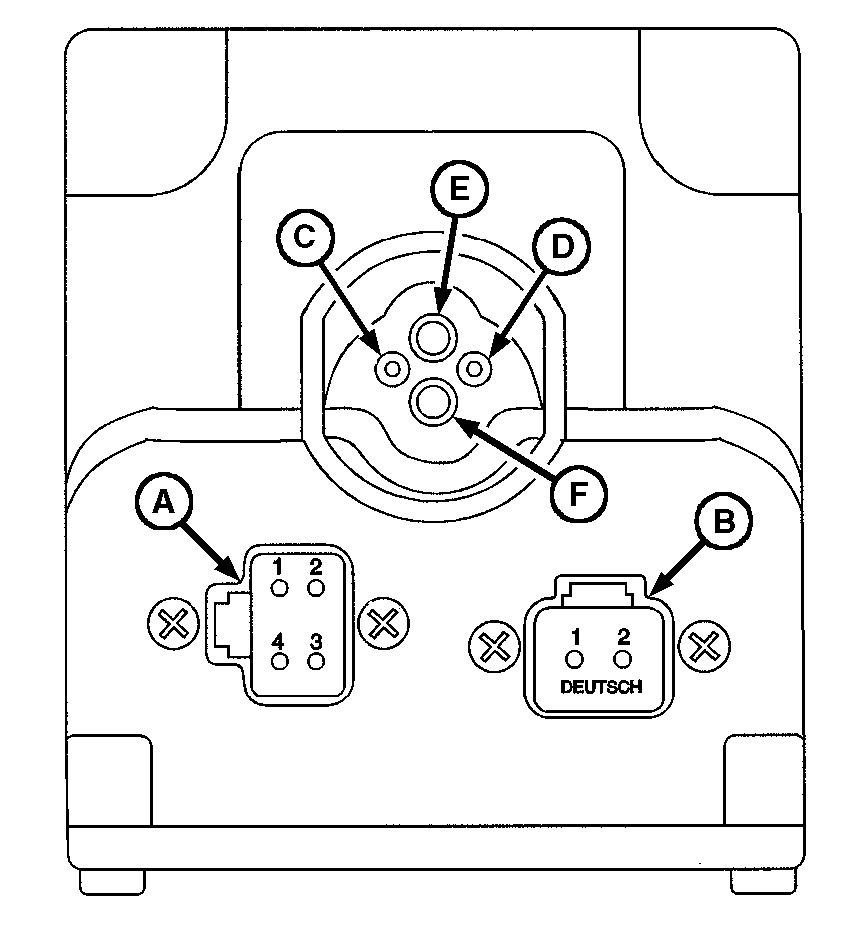

19. Connect 4-pin plug to connector (A) and 2-pin plug to connector (B).

20. The ISO Implement connector must have the 2 red and 2 black wires hooked-up to the top four sockets. These wires come tucked behind the protective wire conduit.

21. Cut the tape wrapped around these wires and remove the shrink-wrap.

NOTE: Positive and negative symbols are molded into the lip of the box as a guide showing where the insert wires.

NOTE: To connect wires, insert wire end firmly into terminal. Properly connected wire will remain connected when wire is gently pulled.

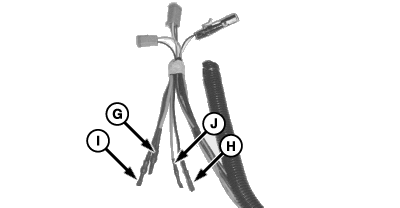

22. Connect large red wire (G) to terminal (E), small black (H) to terminal (D), large black (I ) to terminal (F) and small red (J) to terminal (C).

A-4-Pin Connector
B-2-Pin Connector
C-Terminal
D-Terminal
E-Terminal
F-Terminal
G-Large Red Wire (CC 062)
H-Small Black Wire (CC 010B)
I-Large Black Wire (CC 010)
J-Small Red Wire (CC 032C)

AG,OUO6023,984 -19-21JUL00-10/10
