Install Radar Signal Harness-8000 and 9000 Series Tractors

NOTE: 8000 Series Tractor installation illustrated.

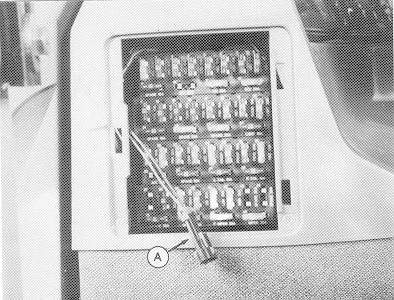

1. Remove fuse panel cover and locate 2-pin harness (A).


A-2-Pin Harness

A40635

AG,OUO6023,988 -19-21JUL00-1/4

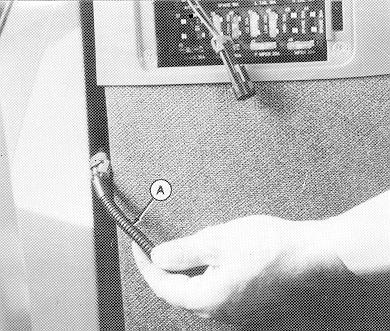

2. Route signal harness (A) behind console and into fuse panel area.


A-Signal Harness

A40636

AG,OUO6023,988 -19-21JUL00-2/4

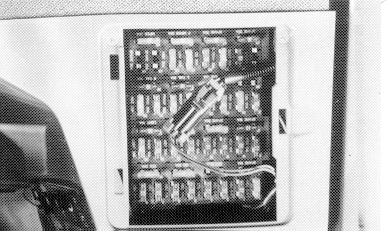

3. Connect signal harness to tractor harness. Push connector back to side of fuses.

4. Install fuse panel cover.

A40637

AG,OUO6023,988 -19-21JUL00-3/4

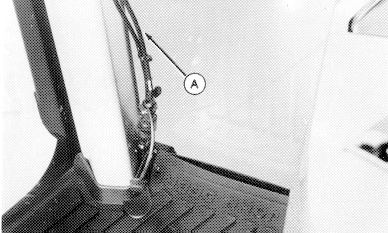

5. Route signal harness under floor mat, along window.

6. Connect signal harness to monitor radar harness (A).


A-Monitor Radar Harness

A40638

AG,OUO6023,988 -19-21JUL00-4/4
