Install Radar-30-55 Series Four-Wheel Drive Tractors

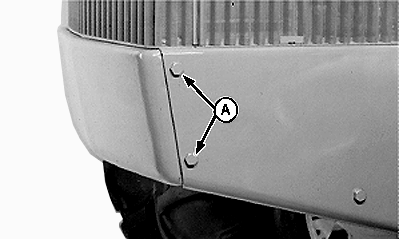

1. Remove front two cap screws (A) from left-hand side of tractor.

2. Attach radar unit to mounting plate with 1/4 x 4 in. cap screws (B), washers and lock nuts (do not overtighten). Be certain radar unit is mounted on plate so serial number plate (C) is facing up when plate is attached to tractor.

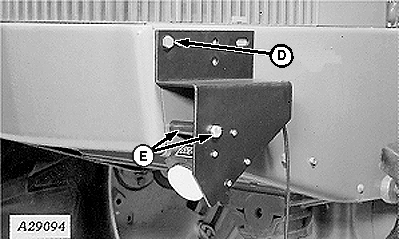

3. Attach mounting plate to tractor with one cap screw (D) removed in Step 1 and 5/8 in. cap screw and bushing (E).

A-Cap Screws, Front
B-Cap Screws, 1/4 x 4 In., Washers and Lock Nuts
C-Serial Number Plate
D-Cap Screw
E-Cap Screw, 5/8 In., and Bushing

AG,OUO6023,989 -19-21JUL00-1/2

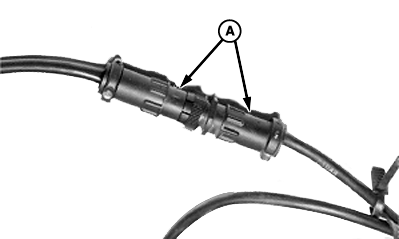

4. Route cable back toward rear axle and connect to power module radar lead (A).

CAUTION: Avoid looking directly into the sensor face to prevent possible eye damage from the microwave signal emitted from radar sensor.

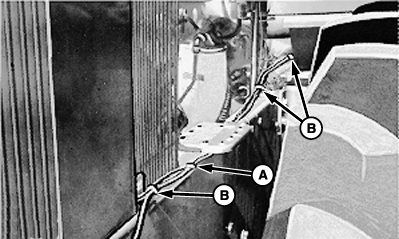

5. Fasten radar cable leads to tractor with tie straps (B).

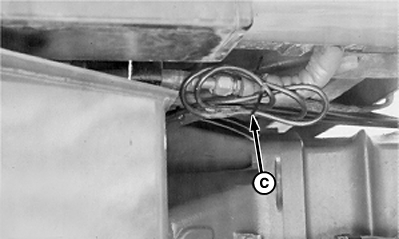

6. Loop and tie excess radar cable to tractor beneath SOUND-GARD ® body with tie strap (C).

A-Power Module Radar Lead
B-Tie Straps
C-Tie Strap

SOUND-GARD is a trademark of Deere & Company.
