Modification and Installation of Radar Bracket (60 Series Four-Wheel Drive Tractors)

NOTE: The radar bracket needs a 17.5 mm (11/16 in.) hole added to allow bracket to bolt to the frame under the engine.

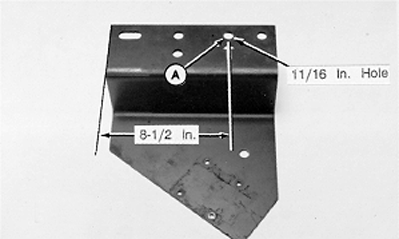

1. Mark center point as illustrated at (A) and drill 17.5 mm (11/16 in.) hole.


A-Center Point

A46943

AG,OUO6023,991 -19-21JUL00-1/2

2. Install bracket on tractor with two 5/8 x 2-1/2 in. cap screws, flat washers and nuts at (A) using the holes as illustrated.

NOTE: Shift bracket so top of bracket is LEVEL.

causym CAUTION: Avoid looking directly into the sensor face of radar to prevent possible eye damage from microwave signal emitted from radar sensor.

3. Install radar unit on bracket, with serial number plate facing up with cap screws, washers and nuts (B).

H40991


A-Installation Point
B-Cap Screws, Washers and Nuts

AG,OUO6023,991 -19-21JUL00-2/2
