Modification and Installation of Radar Bracket (70 Series Four-Wheel Drive Tractors)

1. Mark center point from (A) and (B) as illustrated and drill 17.5 mm (11/16 in.) hole (C) in radar bracket.

NOTE: Shift bracket until top is LEVEL.

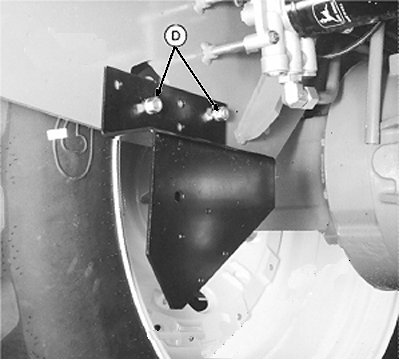

2. Install bracket on tractor with two 5/8 x 1-1/2 in. bolts, lock washers and nuts using holes as illustrated at (D).


A-98 mm (3-7/8 in.)
B-45 mm (1-3/4 in.)
C-Hole, 17.5 mm (11/16 in.)
D-Holes

A35511
A45954

AG,OUO6023,992 -19-21JUL00-1/2

causym CAUTION: Avoid looking directly into the sensor face of radar to prevent possible eye damage from microwave signal emitted from radar sensor.

3.

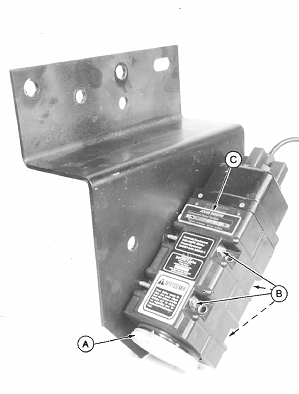

Install radar unit (A) on inside of bracket with four 1/4 x 4 in. cap screws (B) (washers under head of cap screws against radar unit), and nuts.

NOTE: Be certain radar unit is mounted on bracket with radar serial number plate (C) facing up.


A-Radar Unit
B-Cap Screws, 1/4 x 4 in. (4 Used)
C-Radar Serial Number Plate

A35513
