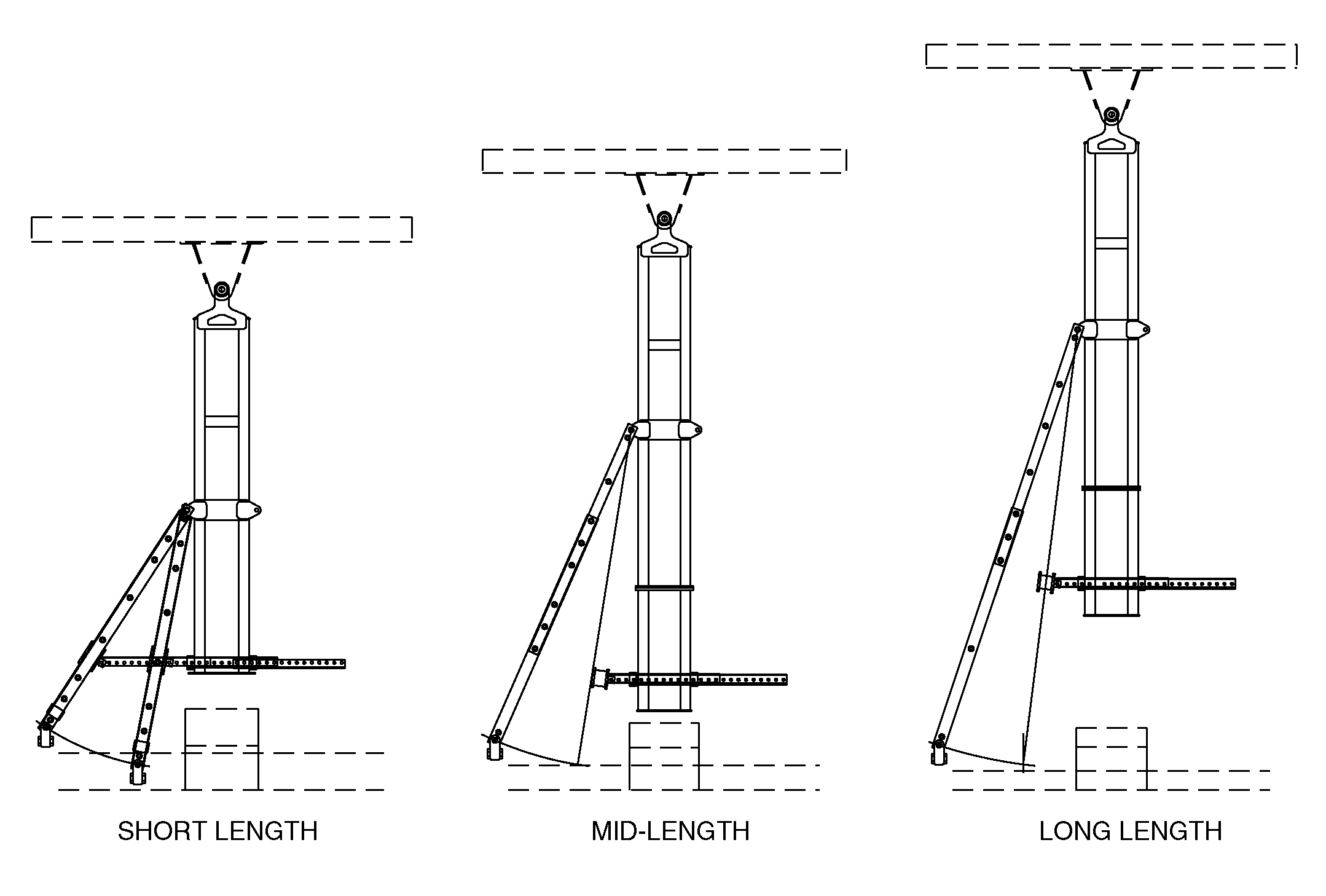

Field hitch is factory assembled with tubes set at the shortest length. Short tube length is used for some seeding applications and need not be reset from factory shipping positions.

Length of tool-to-cart hitch tubes are adjustable to provide clearance for rear bar attachments such as press wheels and harrow.

These applications require that tubes be reset to mid-length or long-length positions.

Installation of hitch frame extension is required in all applications where hitch tubes are extended.

AG,OUO1018,256 -19-14APR99-1/2

NOTE: See diagram on following pages for specific applications and settings.

Adjustment of hitch tube cross-support is required for all installations, regardless of tube length settings. Cross-support must be relocated to frame extension when mid-length or long-length settings are used.

Storage stands may need to be relocated closer to tube ends to support hitch when disconnected from tool.

AG,OUO1018,256 -19-14APR99-2/2
