Installing GREENSTAR® Display (30-70 Series Tractors)

1. Assemble brackets (A) and attach to window ledge with cap screws (B).

2. Place rubber washer (C) over hole.

A-Brackets
B-Cap Screws
C-Rubber Washer

GREENSTAR is a trademark of Deere & Company.

AG,OUO1074,1595 -19-24APR00-1/15

For open station tractors, drill hole in right fender and attach bracket (A) with 3/8 x 3-1/2 in. cap screw (B) and 0.391 x 2 x 0.22 in. washer (C) and 3/8 in. nut. Install rubber washer over hole.

Order from Parts:

A-Bracket
B-Cap Screw, 3/8 x 3-1/2 in.
C-Washer, 0.391 x 2 x 0.22 in.

AG,OUO1074,1595 -19-24APR00-2/15

1. Attach monitor bracket to pivot with M10 x 60 cap screw and nut (A).

NOTE: M6 x 12 cap screws are inside packing of display box.

2. Attach bracket to monitor with two M6 x 12 cap screws (B).

3. Install monitor to mounting bracket with M6 x 20 cap screw (C).

4. Install lead end from cab harness into monitor at (D).

5. Secure terminator (E) to underside of mounting bracket with tie strap.

A-Cap Screw, M10 x 20 and Nut
B-Cap Screws, M6 x 12
C-Cap Screw, M6 x 20
D-Cab Harness
E-Terminator

AG,OUO1074,1595 -19-24APR00-3/15

Install bracket to inside of cab (right-hand front window) with two M10 x 25 cap screws (A).

A-Cap Screws

AG,OUO1074,1595 -19-24APR00-4/15

1. Attach monitor bracket to pivot with M10 x 60 cap screw and nut (A).

NOTE: M6 x 12 cap screws are inside packing of display box.

2. Attach bracket to monitor with two M6 x 12 cap screws (B).

3. Install monitor to mounting bracket with M6 x 20 cap screw (C) making certain to install rubber washer on top of strap when mounting.

A-Cap Screw, M10 x 60 and Nut
B-Cap Screws, M6 x 12
C-Cap Screw, M6 x 20

AG,OUO1074,1595 -19-24APR00-5/15

4. Install lead end from cab harness (A) into monitor.

5. Fasten terminator (B) to underside of mounting bracket with tie strap.

A-Cab Harness
B-Terminator

AG,OUO1074,1595 -19-24APR00-6/15

A-Power Adapter Harness (BA28418)
B-Cab Harness

C-Implement Harness
D-Radar Connector

E-Convenience Outlet
F-Global Position Receiver

G-Power Adapter Harness
H-Voltage Protection Diode

NOTE: The GREENSTAR ® Harness requires two different power sources. One is used to power the Display, Mobile Processor and GPS Receiver, the other to power the implement devices. It is also recommended to add Transient Voltage Protection.

These power sources are the convenience outlet and the program connector. Field conversion kit BA28418 is available in the event that the tractor does not provide either or both of these connections or if TVP is needed. Please refer to AA66739 for installation instructions.

GREENSTAR is a trademark of Deere & Company.

AG,OUO1074,1595 -19-24APR00-7/15

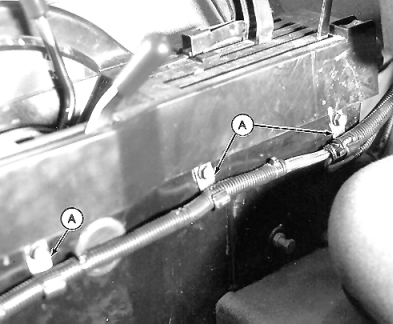

1. Using three cap screws on side console, fasten harness with clips (A) provided.

2. Remove panel from rear of cab. Cut out a notch in panel for the receiver end of cab harness RE158190.

3. Connect terminator to the front end of the RE158190 cab harness.

4. Route the display and processor connectors along the control console to front of cab and connect to display and processor if installed.

5. Connect implement harness to cab harness.

A-Clips

GREENSTAR is a trademark of Deere & Company.

AG,OUO1074,1595 -19-24APR00-8/15

6. Tape or tie band CAN terminators to suitable location to prevent rattling.

7. Install power adapter harness (BA28418).

8. Connect monitor power connector to BA28418.

A-RE158190 GREENSTAR® Harness
B-CAN terminator (RE70773 or RE165032)
C-RE171663 Wiring harness

GREENSTAR is a trademark of Deere & Company.

AG,OUO1074,1595 -19-24APR00-9/15

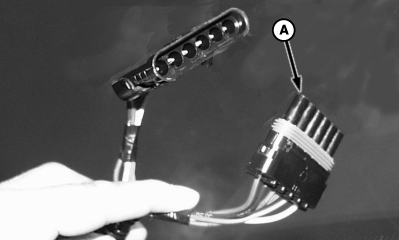

9. Separate 6-pin connector (A) on cab harness and connect to 6-pin connector on BA28418.

AG,OUO1074,1595 -19-24APR00-10/15

10. Route implement harness and adapter harness through grommet (A).

11. Install grommets (A) into rear plate (B).

12. Attach rear plate to cab with six 5/16 x 7/8 in. cap screws (C).

A-Grommet
B-Rear Plate
C-Cap Screws

AG,OUO1074,1595 -19-24APR00-11/15

13. Remove four cap screws (A), two nuts and SAVE for reuse.

14. Remove connector mounting plate (B) and DISCARD.

A-Cap Screws
B-Mounting Plate

AG,OUO1074,1595 -19-24APR00-12/15

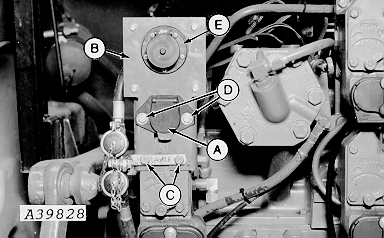

15. Install 7-pin connector (A) through slot in bracket (B).

16. Mount bracket (B) (legs to front) to tractor SCV with two cap screws (C) previously removed.

17. Install two cap screws (D) and nuts previously removed through connector (A) to bracket (B).

18. Install plug assembly (E) on bracket (B) with M6 x 16 screws.

A-7-Pin Connector
B-Bracket
C-Cap Screws
D-Cap Screws
E-Plug Assembly

AG,OUO1074,1595 -19-24APR00-13/15

NOTE: Cover (A) for 4-pin connector can be removed to simplify connection of red and black wires to terminals.

19. To remove cover, lift rear portion to remove from pin (B), then lift straight up in direction of arrow.

A-Cover
B-Pin

AG,OUO1074,1595 -19-24APR00-14/15

20. Connect 4-pin plug on implement harness to connector (A) and 2-pin plug to connector (B).

21. The ISO Implement connector must have the 2 red and 2 black wires connected to the top four sockets. These wires come tucked behind the protective wire conduit.

22. Cut the tape wrapped around these wires and remove the shrink-wrap.

NOTE: Positive and negative symbols are molded into the lip of the box as a guide showing where the insert wires.

NOTE: To connect wires, insert wire end firmly into terminal. Properly connected wire will remain connected when wire is gently pulled.

23. Connect large red wire (G) to terminal (E), small black (H) to terminal (D), large black (I ) to terminal (F) and small red (J) to terminal (C).

A-4-Pin Connector
B-2-Pin Connector
C-Terminal
D-Terminal
E-Terminal
F-Terminal
G-Large Red Wire (CC 062)
H-Small Black Wire (CC 010B)
I-Large Black Wire (CC 010)
J-Small Red Wire (CC 032C)

AG,OUO1074,1595 -19-24APR00-15/15
