Connecting Remote Seeder Switch Wiring

As seeding equipment lowers, remote switch closes to engage main drive clutch. On John Deere 730 Air Disk Drill, remote switch also energizes the disk lowering solenoid.

AG,OUO6023,1007 -19-21JUL00-1/2

NOTE: Harness lead is labeled "LIFT".

NOTE: Some models of the 1860 No-Till Air Drill may be equipped with two remote seeder switches. Connect cable to cart for switch on desired rank of openers (front or rear). Cables and switches are marked with color-coded tie bands for ease of identification.

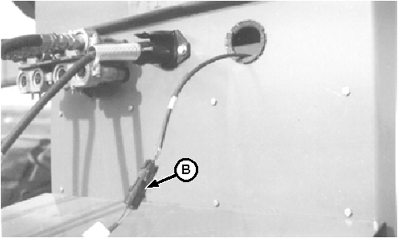

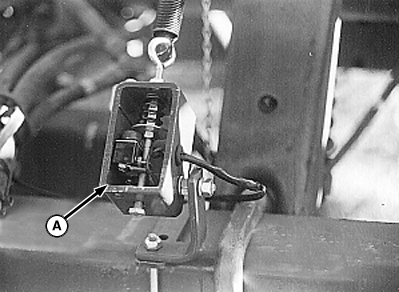

Attach cable from switch (A) to "LIFT" connector (B) at the seed cart.

A-Switch
B-Connector
