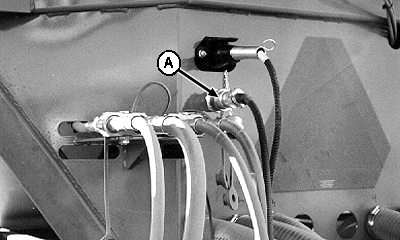

Connecting Optional Blockage Warning/Seed Counting Wiring Harness (If Equipped)Tow-Between Cart (Shown): If seeding tool is equipped with blockage monitoring system and/or seed counting system, interface connection must be made to the carts' standard monitor and control system at DEUTSCH ™ screw-on connector (A). Tow-Behind Cart (Not Shown): When equipped with seed counting system, interface connection is made on the cart and is not externally visible. When seeding equipment is equipped with blockage monitoring system, interface connection is made at the rear of the seeding tool. This interface connection uses a DEUTSCH ™ screw-on connector, similar in appearance to the one shown in tow-between application. Tow-Between or Tow-Behind Carts: Refer to Seed Counting System or Blockage Warning System section(s) for further information on interface connections. |
|
|
DEUTSCH is a trademark of Deutsch Co. | AG,OUO6023,1011 -19-21JUL00-1/1 |
