Detaching Machines From Tractor

causym CAUTION: To help prevent severe injury or death to you or someone else:

Keep all persons away from machine when raising and lowering wings.

Always locate machine on level ground when raising and lowering wings.

Never raise or lower wings when moving.

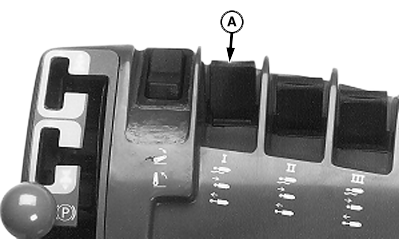

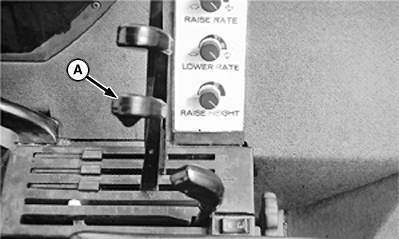

1. With transmission in "park", start tractor engine and pull No. 1 tractor control lever (A) rearward to raise frame.


A-No. 1 Tractor Control Lever

N45491

With Mechanical SCV Controls

N48107

With Electro/Hyd SCV Controls

AG,OUO6023,1014 -19-21JUL00-1/8

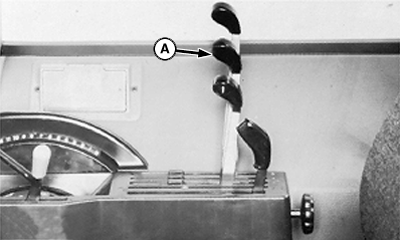

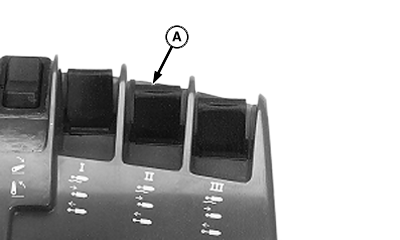

2. Move No. 2 tractor control lever (A) rearward to fold wings fully.


A-No. 2 Tractor Control Lever

A25573

With Mechanical SCV Controls

N48108

With Electro/Hyd SCV Controls

AG,OUO6023,1014 -19-21JUL00-2/8

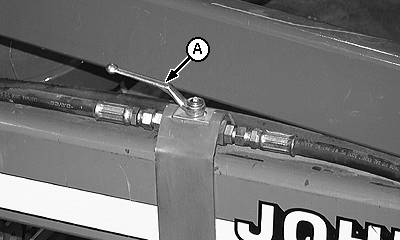

3. Close transport lock-up valve (A) on seeding equipment.


A-Transport Lock-Up Valve

A43344

AG,OUO6023,1014 -19-21JUL00-3/8

4. Seeding Tool: Attach hitch jack in storage position with pins.

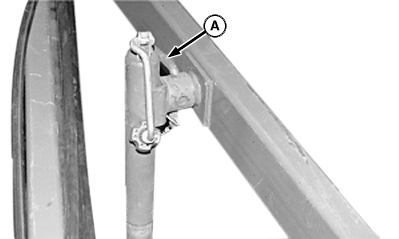

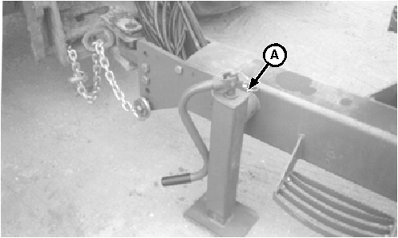

Tow-Between Cart or Seeding Tool: Remove weight from tractor drawbar using hitch jack (A).


A-Hitch Jack

A41639

Tow-Between Cart

N40112

Seeding Tool

AG,OUO6023,1014 -19-21JUL00-4/8

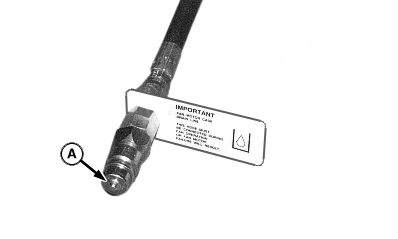

5. Remove fan motor case drain hose (A) from low-pressure drain coupler (B).

With 735 or 1810 Seeding Tools: Remove depth-control relief hose from low-pressure drain connections or SCV connection if used.


A-Fan Motor Case Drain Hose
B-Low-Pressure Drain Coupler

A37979
N45535

60 and 70 Series 4WD Tractors

RW55342A

8000 Series Tractors

A42741A

9000 Series Tractors

AG,OUO6023,1014 -19-21JUL00-5/8

6. (If Wings are Folded) Before disconnecting folding cylinder hydraulic hoses, relieve pressure by either positioning tractor control (A) in "float" position (with Electro/Hyd SCV Control) or turn tractor engine off and cycle lever (A) back and forth three times (with Mechanical SCV Control).


A-Tractor Control

A25573

With Mechanical SCV Controls

N48108

With Electro/Hyd SCV Controls

AG,OUO6023,1014 -19-21JUL00-6/8

causym CAUTION: Serious personal injury can result if you attempt to disconnect hydraulic hoses under pressure.

Mechanical SCV Control: Shut off tractor engine and work levers back and forth to relieve pressure before disconnecting hoses.

Electro/Hydraulic SCV Control: Place SCV controls in "float" position to relieve pressure before disconnecting hoses.

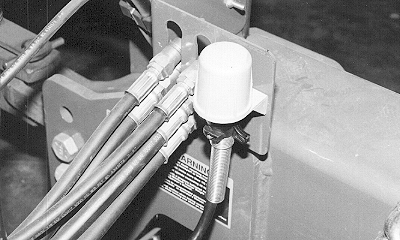

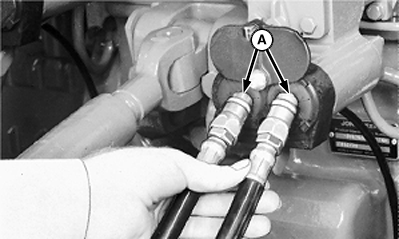

7. Remove hydraulic hoses (A) and electrical connectors from tractor outlets and cover receptacles. Place hoses and cables in storage positions on hitch bracket.


A-Hydraulic Hoses

RW5887

With Mechanical SCV Controls

RW55304

With Electro/Hyd SCV Controls

A42165

1910 Commodity Cart

N45567

Seeding Tool

AG,OUO6023,1014 -19-21JUL00-7/8

8. Remove safety chain (B).

9. Remove hitch pin (A).

10. Drive tractor away from machine.


A-Hitch Pin
B-Safety Chain

A41633

AG,OUO6023,1014 -19-21JUL00-8/8
