Detaching Seeding Tool From Tow-Between Cart

causym CAUTION: To help prevent personal injury caused by unexpected movement of the machine:

Park machine on level surface.

Block seeding tool tires.

Lower seeding tool to the ground.

Before removing hitch pin, be sure no upward force exists at hitch connection.

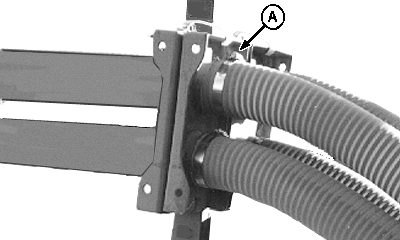

1. Open clips to disconnect air hose connectors (A). Install coupler cover plates. If cover plates are not available, plug tubes with rags to keep debris and rodents out.

A42323


A-Air Hose Connectors

AG,OUO6023,1015 -19-21JUL00-1/6

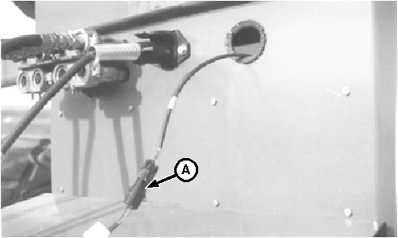

2. Disconnect remote seeder switch cable (A) (if equipped).

3. Disconnect any other cables or harnesses attached at the rear of the cart, including:

· 730 Air Disk Drill-Disk lowering solenoid cable.

· 1810 Seeding Tool with Touchset ™ Depth Control-Potentiometer cable.


A-Remote Seeder Switch Cable

A41640

TouchSet is a trademark of Deere & Company

AG,OUO6023,1015 -19-21JUL00-2/6

causym CAUTION: Serious personal injury can result if you attempt to disconnect hydraulic hoses under pressure.

· Mechanical SCV Controls: Shut off tractor engine and work levers back and forth to relieve pressure before disconnecting hoses.

· Electro/Hydraulic SCV Controls: Place SCV controls in "float" position to relieve pressure before disconnecting hoses.

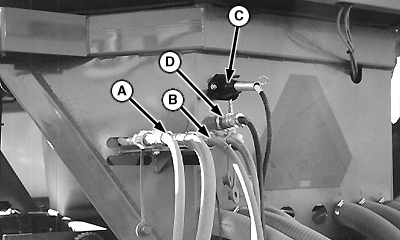

4. Disconnect depth-control and wing-fold hoses from hydraulic couplers (A and B).

With 735 Seeding Tools: Disconnect crossover relief valve hose.

5. Disconnect warning light cable (C) from plug.

6. If equipped with Seed Counters and/or Blockage Monitor: Disconnect communications cable from plug (D).

A41635A


A-Hydraulic Coupler
B-Hydraulic Coupler
C-Warning Light Cable
D-Plug

AG,OUO6023,1015 -19-21JUL00-3/6

7. Place hoses and warning light plug in storage position on hitch.

N45567

AG,OUO6023,1015 -19-21JUL00-4/6

8. Attach hitch jack in storage position with pin (A). Remove weight from tongue by cranking handle.


A-Pin

N40112

AG,OUO6023,1015 -19-21JUL00-5/6

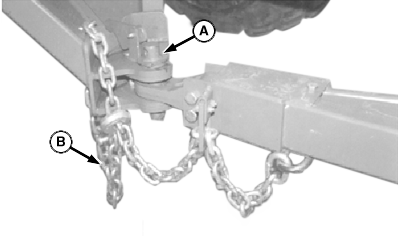

9. Remove hitch pin (A) and safety chain (B).

10. Drive tractor and air cart away from seeding tool.


A-Hitch Pin
B-Safety Chain

A41634
