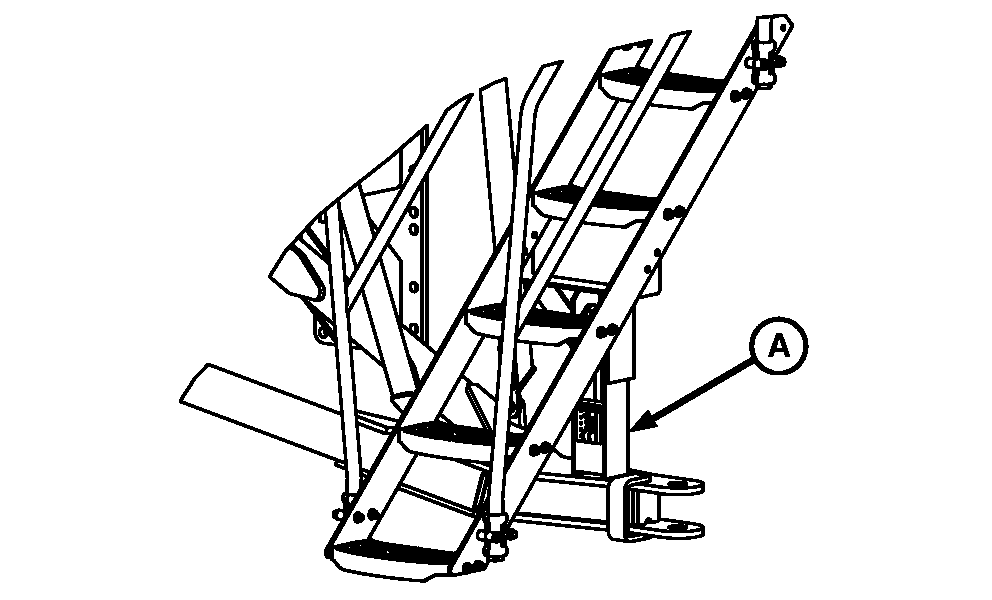

Transporting Rear Attached Implement-Tow-Behind CartRear hitch (A) is an optional attachment for tow-behind cart. Before transporting with an implement attached to the rear of a tow-behind cart:
IMPORTANT: Do not exceed 9979 kg (22,000 lb). Damage to machine will accrue. 1. Refer to implement's operator's manual for machine weight. 2. Add implement weight to cart/seeding tool weight to ensure that total weight does not exceed safe transport limit of the tractor. Refer to CALCULATING MINIMUM TRACTOR WEIGHT FOR SAFE TRANSPORT for calculation formula and examples. IMPORTANT: For further information, refer to CONNECT REAR LIGHTING HARNESS in Attaching and Detaching section. 3. Connect rear lighting harness to cart electrical system and then implement's lighting harness to POWER OUT (7-terminal) plug. 4. When done transporting, disconnect rear lighting harness from electrical system and reconnect cart warning light leads, returning cart warning lights to operation. |
|
AG,OUO6023,1029 -19-21JUL00-1/1 |
