Connecting Main Clutch Power Jumper (Limp Home Feature)

In the event of an electronics failure, main clutch can be "hot-wired" in the engaged, full-time ON, position using power jumper. Connection of the power jumper allows you to continue seeding without using display console switch for ON/OFF control.

NOTE: Power jumper wire is part of the main cart harness, with "LIMP HOME" connector located near the controller on tow-between carts or rear of the cart on tow-behind carts.

NOTE: If cart is equipped with auger fill lights, the lighting harness has a limp home connector.

1. Disconnect seed cart harness connector from clutch plug.

AG,OUO6023,1040 -19-21JUL00-1/2

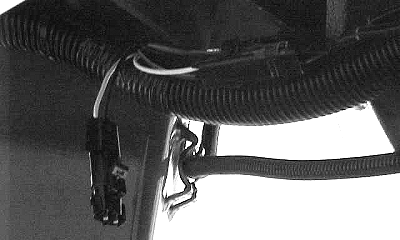

2. Attach power jumper "LIMP HOME" connector to clutch plug.

AG,OUO6023,1040 -19-21JUL00-2/2
