Interchangeable Meter Cartridge Assemblies

If frequent product changes are part of normal operations, a second meter cartridge assembly (A) should be built-up, with different rate meter segments, to make product changeover faster and easier.

For cartridge assemblies to be interchangeable, second meter assembly will need to be customized with enclosure doors (B) and fine tuning rings in the same positions as original.

Refer to METER CARTRIDGE/SEEDING TOOL DIAGRAMS in this section to confirm that meter cartridge has been properly customized for your seeding tool application.

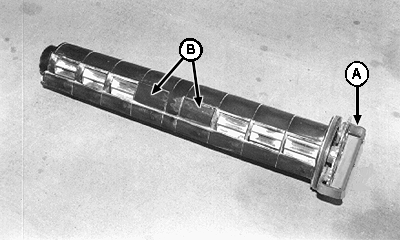

A-Meter Cartridge Assembly
B-Enclosure Doors

AG,OUO6023,1043 -19-21JUL00-1/1
