Inspect Air System Seals, Hoses and Header Rings

IMPORTANT: Product metering will be adversely affected if tank is not sealed tightly. If the tank is not pressurized, product will not meter properly.

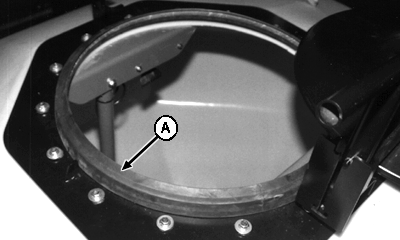

1. Inspect tank lid seals (A) at each filling or daily. Replace as necessary.

A-Tank Lid Seals

AG,OUO6023,1072 -19-21JUL00-1/5

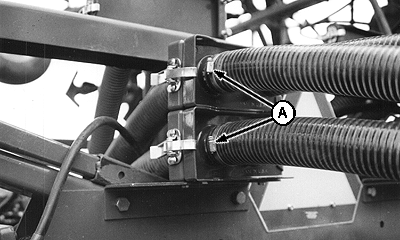

2. Inspect outlet hoses and coupler seals (A) daily. Replace as necessary.

A-Coupler Seals

AG,OUO6023,1072 -19-21JUL00-2/5

NOTE: Seasonally, hoses can be rotated one quarter turn to equalize wear and extend service life.

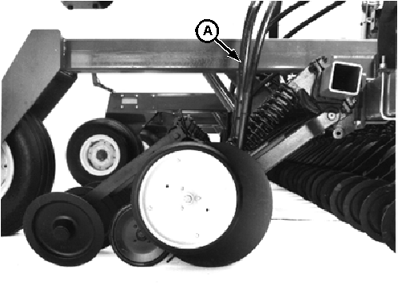

3. Inspect tillage primary hoses (A) for wear or damage. Replace as necessary.

A-Tillage Primary Hoses

AG,OUO6023,1072 -19-21JUL00-3/5

4. Inspect manifold header rings (A) for weathering. Replace as necessary.

A-Manifold Header Rings

AG,OUO6023,1072 -19-21JUL00-4/5

5. Inspect secondary hoses (A) from header ring to seed boot for wear or damage. Replace as necessary.

A-Secondary Hoses

AG,OUO6023,1072 -19-21JUL00-5/5
