IMPORTANT: Display screens illustrated are provided for reference only. Your actual screens may appear differently due to connection of optional devices and/or software version in use.

NOTE: Disregard screen references to JD Map and Air Velocity Sensors. Neither of these features are supported at this time.

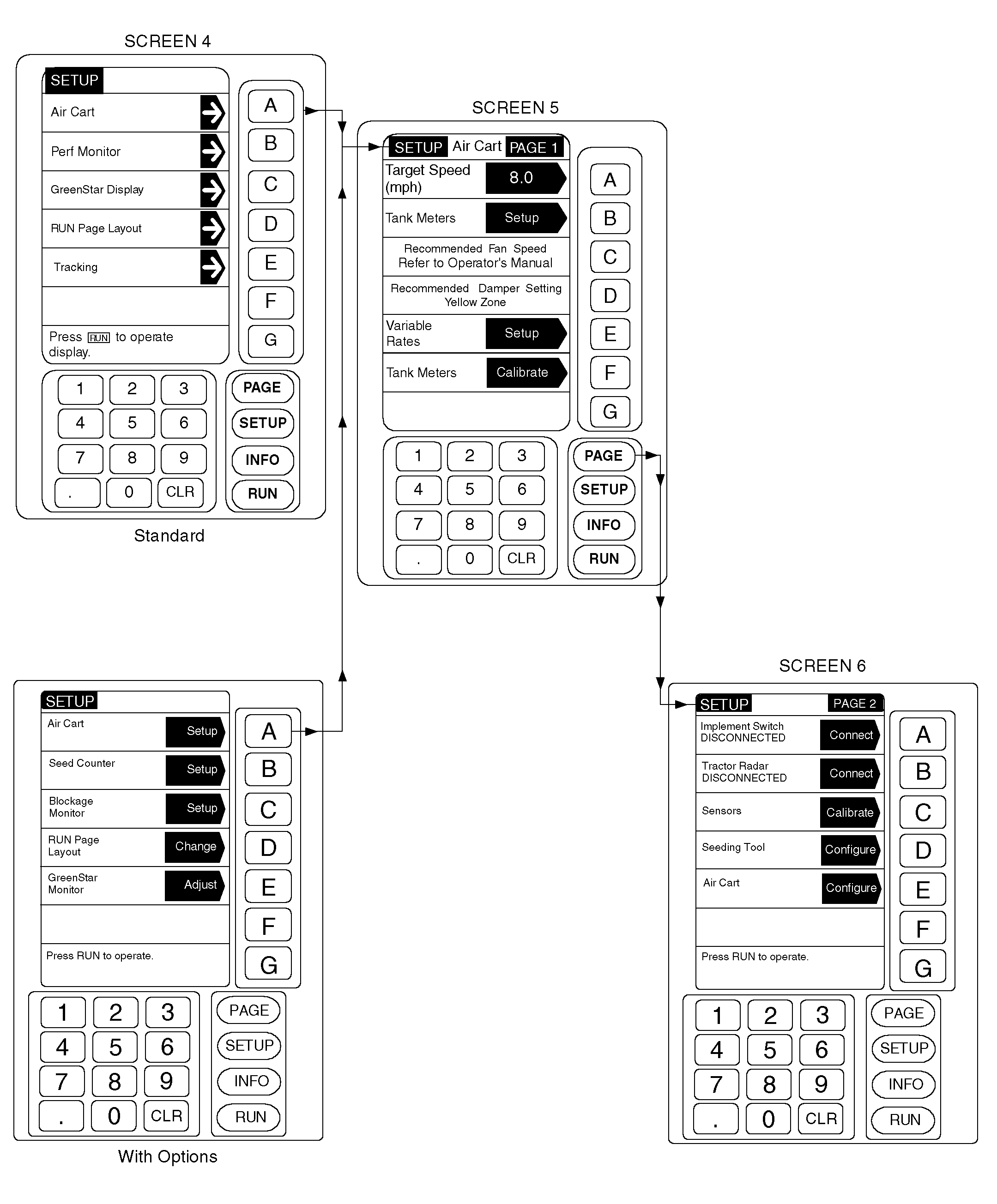

Set-up mode is the process of introducing the cart to it's seeding tool and to the products you wish to apply.

Introductions to optional devices are also made in set-up mode. Refer to Set-Up Mode-Variable Rate, Set-Up Mode-Seed Counting, and Set-Up Mode-Air Cart Blockage sections for set-up of these optional devices.

If so equipped, implement switch and tractor radar should be connected.

Proceed with set-up procedures as described in this section.
