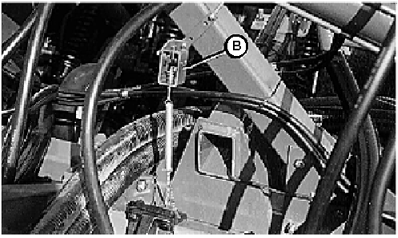

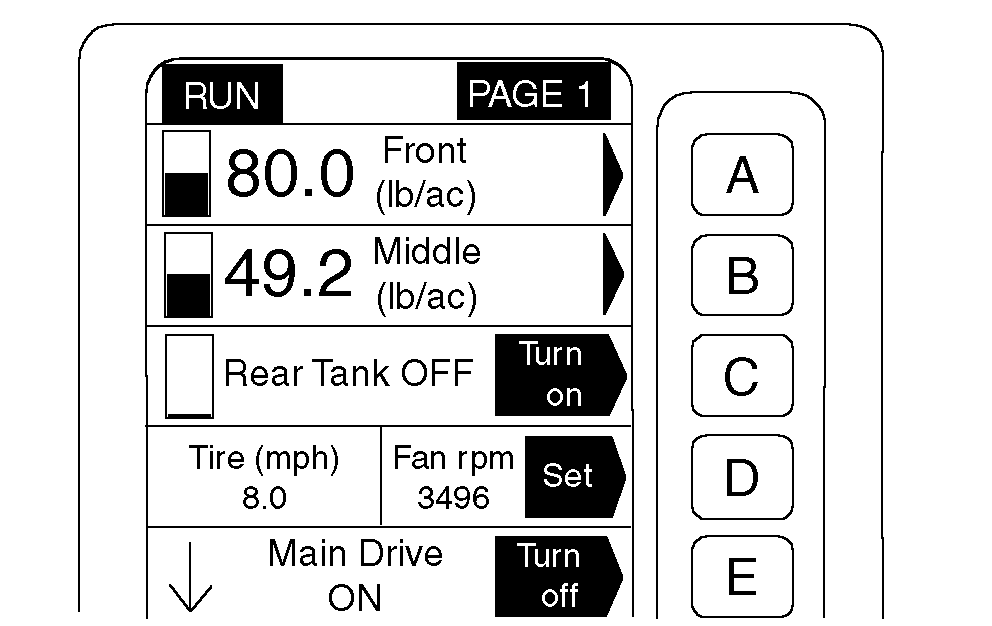

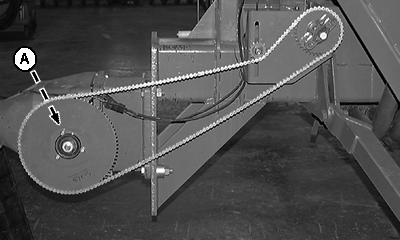

Controlling Product Delivery ClutchesNOTE: Display console must be in RUN mode to operate clutches. NOTE: An audible alarm sounds when main drive clutch is engaged or disengaged for more positive warning. · Main Drive Clutch Main drive clutch (A) is engaged and disengaged (ON/OFF) through the use of the following devices: CONSOLE KEY: Depressing console key "E" turns the main drive clutch on and off. · With optional remote tillage implement switch (B): The monitor Main Drive OFF/ON key allows the operator to override (disengage/engage) main drive clutch regardless of remote tillage switch position. Clutch can be disengaged while seeding tool is still in the ground (indicator arrow down). All application rate displays change to 0.0 when main clutch disengages. If the seeding tool is raised, arrow will be pointing up with Main Drive display showing "OFF" unless overridden by user. When seeding tool openers are lowered, arrow points down, display changes to "ON", and application rates return to active display unless overridden by user. · Without implement switch: OFF position disengages main drive clutch. ON position engages main drive clutch. |
|
AG,OUO6023,1109 -19-21JUL00-1/2 |
|
IMPORTANT: Main drive clutch must be disengaged when transporting cart. · Independent Meter Clutches: Each meter (front, rear and middle, if equipped) has it's own independent clutch (A). Depressing console keys A (Front), B (Middle) or C (Rear) turns clutch on and off. OFF Position disengages clutch to stop product delivery from this meter. Display will show OFF. IMPORTANT: To avoid product overload of meter cartridge and shearing of drive system protection pin, engage clutch only when fan is running. ON position engages clutch to start product delivery from this meter. Display will show application rate information when main and meter clutches are engaged and cart is in motion. NOTE: In-tank product level is displayed regardless of clutch/meter state. |
|
