Variable Rate Control System

Variable rate control allows the operator to increase or decrease product application rates without leaving the tractor cab by changing rate settings through the GREENSTAR ® display console (A). Rate settings are not adjusted individually, but in combination with other tank(s), through use of operator built menus. See SET-UP MODE-VARIABLE RATE in this section for further information.

A-GREENSTAR® Display Console

GREENSTAR is a trademark of Deere & Company.

AG,OUO6023,1116 -19-21JUL00-1/3

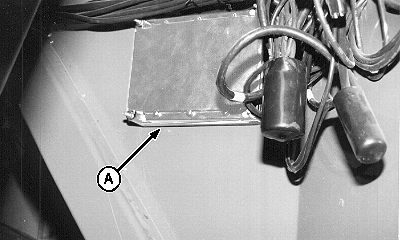

When cart is equipped with optional variable rate control, standard SEEDSTAR ® controller is replaced with an expanded controller (A) containing software to operate and monitor this function.

A-Expanded Controller

SEEDSTAR is a trademark of Deere & Company.

AG,OUO6023,1116 -19-21JUL00-2/3

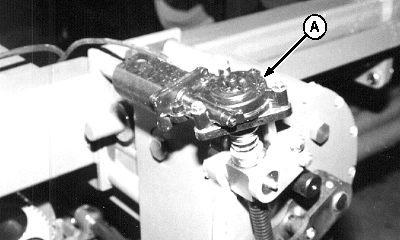

Changing rate settings energizes the transmission mounted rate motor (A); turning adjustment screw to increase or decrease transmission output speed and application rate to agree with operator's selection.

A-Transmission Mounted Rate Motor

AG,OUO6023,1116 -19-21JUL00-3/3
