Warnings, Cautions and Advisories-Standard GREENSTAR® Display
|
|

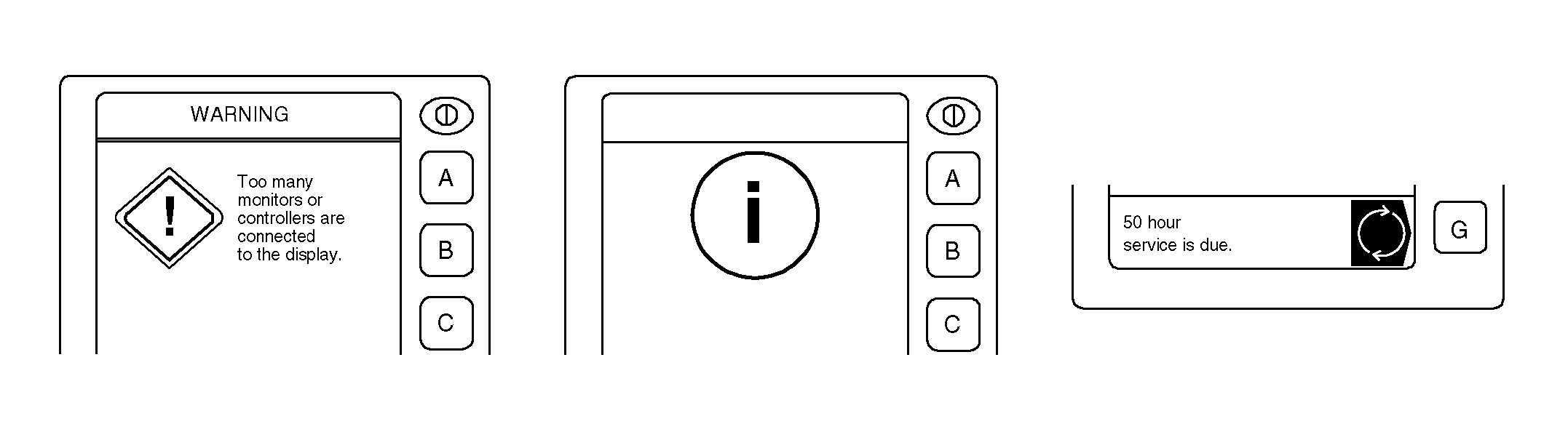

GREENSTAR ® Display has its own full page warnings and cautions that communicate faults and failures to the operator. |
When cancelled, full-page warnings display at the bottom of RUN Page 1 as advisories until the condition is corrected. |
| Fault Code Descriptions | ||
|---|---|---|
| Fault Code | Display Action Message | Description |
| CAUTIONS [i] 110 |
Check Wiring | Communications wiring problem. |
| 111 | Check Wiring | Communications wiring problem. |
| 112 | Display Conflict | Request for display space made without space being free. |
| 113 | Incompatible monitor/controller | Controller is trying to send messages while not being logged into display. |
| Lamp Not Detected Upper/Lower | Repair Upper/Lower Lamp, cycle power. | |
|
Except for Display Conflict (Codes 21 and 112), Caution Fault Codes are cleared by re-booting system |
(power OFF and ON). Display Conflict is cleared by performing Run Page Layout. |
| WARNINGS [!] 20 |
Disconnected monitor/controller | Controller is not communicating with display. |
| 21 | Display Conflict | Request for display space made without space being free. |
| 30 | Too many monitor/controllers | More controllers are logged into display than can be received. |
| 31 | Display communications overload | Queue is overloaded. Queue messages are not being recorded. |
| 33 | Display memory failure | Likely permanent memory failure. |
|
Except for Display Communications Overload (Code 31), Warning Fault Codes are cancelled by pressing F-Clear key if indicated on screen. Display |
Communications Overload is cleared by re-booting system (power OFF and ON). |
|
GREENSTAR is a trademark of Deere & Company. | AG,OUO6023,1125 -19-21JUL00-1/2 |
|
NOTE: Fault codes are added to "Recent Problems" list found in "GREENSTAR ® Display" "INFO" mode. |
|
GREENSTAR is a trademark of Deere & Company. | AG,OUO6023,1125 -19-21JUL00-2/2 |
