Stop Warning Messages and Reactions-Air Cart
|
|
IMPORTANT: Full screen STOP WARNINGS require immediate attention and corrective action or machine damage will occur. Audio alarm will sound when a full page WARNING is displayed. |
If WARNING message is cancelled, audio alarm will sound again and a similar caution message will display at the bottom of RUN Page 1. |
| [STOP] Warning Message | Cause | Solution |
|---|---|---|

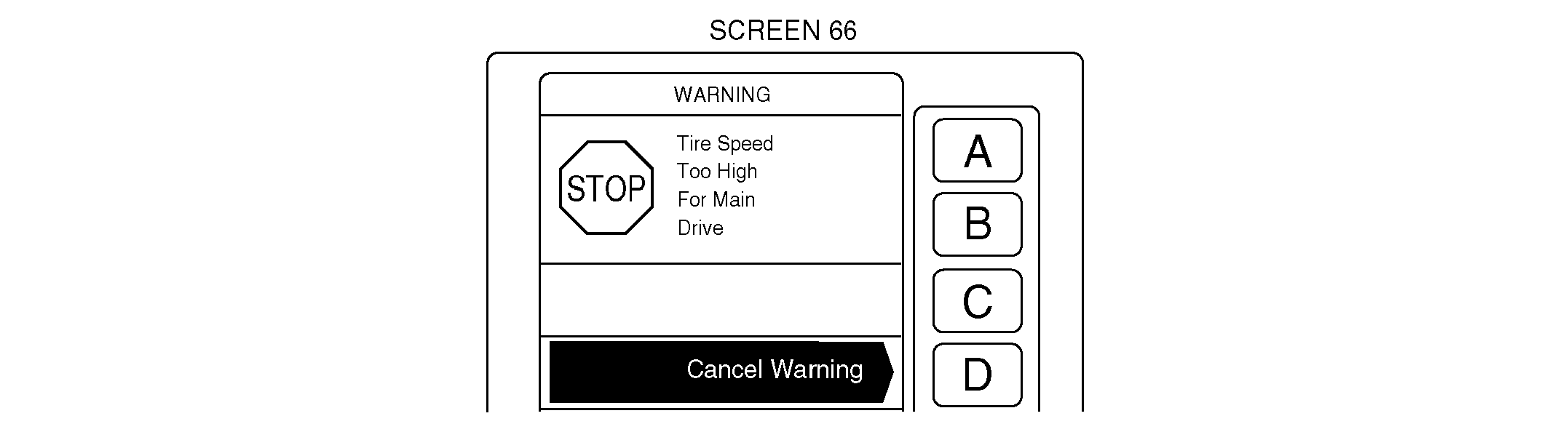

| [STOP] Tire Speed Too High For Main Drive | Tire speed exceeds 19 km/h (12 mph) with main clutch on. | Disengage main clutch or decrease speed immediately. |
| [STOP] Fan Overspeed Detected | Fan speed exceeds 5600 rpm for one second. | Disengage clutches and fan immediately. |
| [STOP] Meter Revolution Exceeding Maximum Limit | Meter speed exceeds 100 rpm. | Disengage clutch immediately. Determine cause of overspeed condition. |
| [STOP] Excessive Speed For Main Drive | Tire speed exceeds 22 km/h (14 mph) with main clutch on. | Disengage main clutch or decrease speed immediately. |
| [STOP] No 7-Pin Power | 7-Pin Connector | Connect 7-Pin Connector |
|
NOTE: Warning messages are coded at occurrence and added to recent problem listing. See INFO |
(INFORMATION) MODE for recall and description. |
AG,OUO6023,1126 -19-21JUL00-1/1 |
