Information Warning Messages and Reactions-Air Cart
|
|
IMPORTANT: Audio alarm will sound when a full page WARNING is displayed. If WARNING message is cancelled, audio alarm will sound again and a similar caution message will display at the bottom of RUN Page 1. |
NOTE: Main clutch is deactivated when low speed warning is displayed. This allows disabling the feature until power is cycled. |
| [I] Warning Message | Cause | Solution |
|---|---|---|
| [I] Low Fan Speed Detected, Main Clutch Disengaged | Fan speed below 500 rpm for five seconds with meter turning. | Check and reset fan speed setting. Inspect fan speed sensor for damage or failure. Clear warning and press "Main Drive" to reactivate clutch. |
|
NOTE: Low speed warning and caution messages will disable below 0.8 km/h (0.5 mph). |
| [I] Tire Speed Too High For Good Performance | Tire speed exceeds 16 km/h (10 mph) with main clutch and at least one meter clutch engaged. | Slow to recommended speed for best performance. |

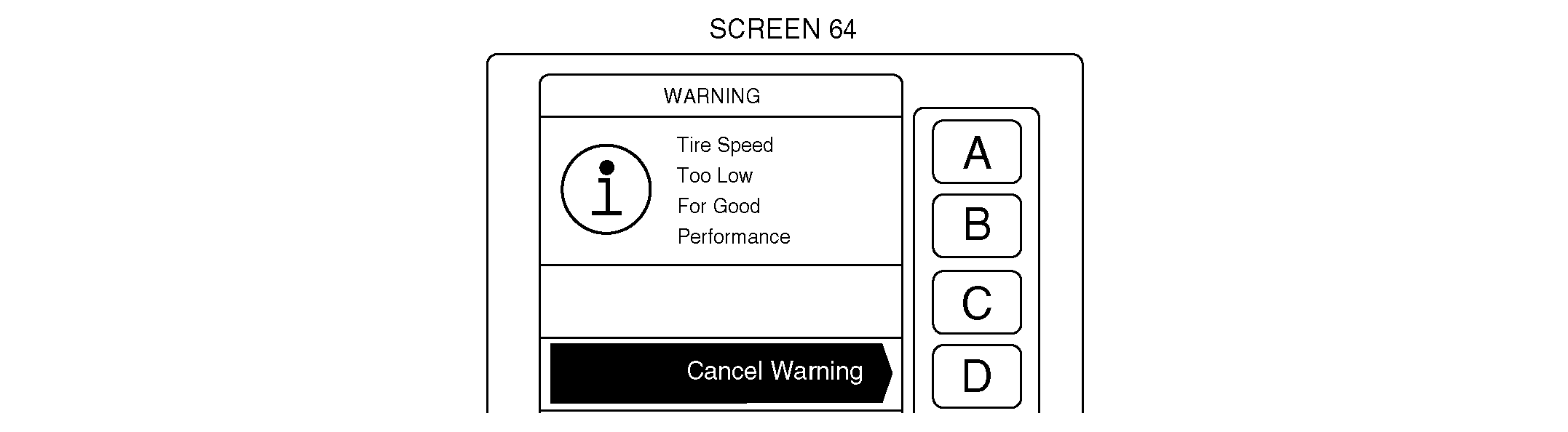

| [I] Tire Speed Too Low For Good Performance | Tire speed below 1.5 km/h (1 mph) with main clutch on. | Disengage main clutch or increase speed. |
|
NOTE: WARNING messages are coded at occurrence and added to recent problems listing. See |
INFO (INFORMATION) MODE for recall and description. |
| [I] Clutch Slippage or Transmission Setting Error (Normal to occur while making large rate adjustments with variable rate.) | Actual application rate is +/- 15% of target rate for 60 seconds. | Stop and check application rate and transmission setting. Check clutch for slippage. |
| [I] Tire Speed Inconsistent With Radar Speed | Tire speed and radar speed differ by more than +/- 10% for 60 seconds. | Stop travel. Recalibrate tire speed sensor and radar speed sensor. |
| [I] Tire sensors need to be calibrated. | Uncalibrated | Calibrate Sensors |
AG,OUO6023,1128 -19-21JUL00-1/2 |
| [I] Invalid Configuration. Meter cannot feed top and bottom primaries. | Only the top OR bottom primary can be associated with one meter at a time. | Choose the desired primary (top or bottom) and choose not feeding for the other. |
AG,OUO6023,1128 -19-21JUL00-2/2 |
