Adjusting Meter Speed Transmissions

Transmission (A) output speed is crank adjusted to agree with recommended setting shown on rate chart or monitor.

IMPORTANT: For 38 cm (15 in.) Row Spacing Only-Transmission speed setting shown on Rate Chart MUST be doubled for this row spacing.

To adjust:

1. Determine setting number from correct rate chart for the product in use and type (color) of segments installed in meter cartridge.

2. Standard Transmission: Turn handle until pointer tip aligns with desired setting number on gauge.

Variable Rate Transmission: To manually adjust motorized variable rate transmission, pull down on spring-loaded drive disconnect collar (B) and turn crank handle to align pointer with desired setting.

3. Release handle to lock-in transmission setting.

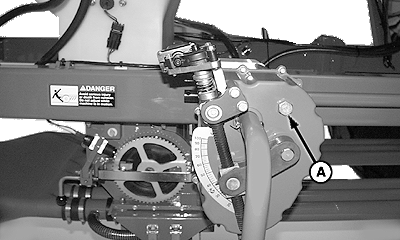

A-Transmission

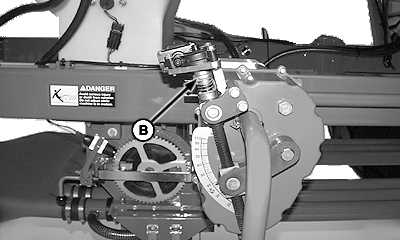

B-Drive Disconnect Collar

AG,OUO6023,1151 -19-21JUL00-1/1
