Verify Metering-Stationary Method

IMPORTANT: Ground speed sensor and tank meters must be calibrated prior to doing field check. Refer to AIR CART SET-UP MODE-CALIBRATE TIRE SENSOR in Operating Machine-Monitor Setup section and AIR CART SET-UP MODE-CALIBRATE METERS in Operating Machine-Monitor Operation section.

1. Determine target application rate for the product in use.

2. Check that existing meter segments can deliver product at desired rate.

3. Make sure there is sufficient product in tank to collect a measurable sample. Product should cover all meter inlets and not be heaped to one side. Half-width disconnect handles must be fully down for accurate rate verification.

4. Meter cartridge assembly must be full of product at the start of the procedure.

IMPORTANT: With variable rate option, for the correct transmission setting and rate desired, seeding must take place for a short distance BEFORE THE CHECK in order to let the variable rate define a transmission setting.

5. Set transmissions to the recommended transmission setting given at the end of each tank calibration.

AG,OUO6023,1156 -19-21JUL00-1/8

6. Hang empty bag (A) from scale (B) and set scale to "0" (zero) by turning knob on top of scale. Setting scale to "0" (zero) will ensure that measured weight is of collected sample only, and does not include the weight of the bag.

A-Collection Bag
B-Scale

AG,OUO6023,1156 -19-21JUL00-2/8

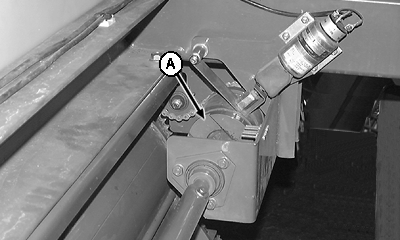

7. Make sure independent meter clutch (A) is electrically or mechanically engaged during rate verification. Clutch is engaged when solenoid lever is up and out of outer member slot.

8. Remove cover plate from bottom of manifold.

A-Independent Meter Clutch

AG,OUO6023,1156 -19-21JUL00-3/8

Install collection bag.

Move slide stop to bottom shoot position (Stationary Double-Shoot only).

NOTE: Before returning to normal operation, ensure slide on stationary double-shoot manifold is in proper position.

AG,OUO6023,1156 -19-21JUL00-4/8

IMPORTANT: Turning crank handle clockwise will result in an inaccurate rate verification.

IMPORTANT: For Stationary Double-Shoot Manifold, turning crank handle with slide in top-shoot position will result in an inaccurate rate check and can result in difficult operation or damage of the slide assembly.

NOTE: On two-tank carts, crank handle is factory installed on front transmission. On carts with optional middle tank, crank handle is installed on middle-tank transmission.

Leave crank handle in factory installed position to avoid contacting frame or other components during rate verification.

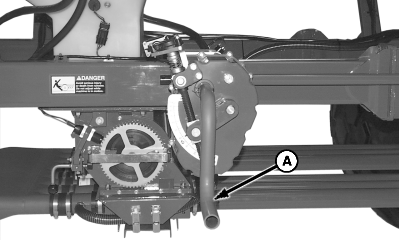

9. Note starting point and turn crank handle (A) counterclockwise, counting each full 360 degree revolution. All transmissions and driveshafts turn when crank handle is turned.

NOTE: Check product level occasionally; do not overfill collection bag.

Depending on product displacement, 100 full crank turns will normally produce a good measurable sample.

For low displacement products, or when yellow meter segments are used, more crank turns may be needed to obtain a measurable amount of product.

10. Remove collection bag.

A-Crank Handle

AG,OUO6023,1156 -19-21JUL00-5/8

11. Hang filled collection bag (A) from scale (B) and weigh sample.

12. Use the following formulas and examples to calculate application rate.

IMPORTANT: Rate calculation is correct only if the proper sprockets are used for row spacing and rear tire size. Refer to charts below.

NOTE: For 38 cm (15- in.) and 76 cm (30 in.) rows, use 19 cm (7.5 in.) row spacing in calculation.

NOTE: Select K-Factor based on tire size and "R" rating from the following chart:

NOTE: The following formulas are designed for both metric and standard computations.

The two factors needed to calculate application rate are arrived at separately.

A-Collection Bag
B-Scale

AG,OUO6023,1156 -19-21JUL00-6/8

· Weight Factor: Multiply weight kg (lbs) of collected sample by the appropriate K-Factor by row spacing in cm (inches) to arrive at weight factor. Select K-Factor based on tire size and "R" rating. Refer to chart on previous page.

Weighed Sample kg (lb) x K-Factor for cm (K-Factor for in.) x Row Spacing cm (in.) = Weight Factor

EXAMPLE: 5.74 kg x 358.6 x 30.5 cm = 62780.1

EXAMPLE: 12.65 lb x 1519 x 12 in. = 230584.2

· Area Factor: Multiply crank turns used to collect sample by seeding tool width to arrive at area factor.

Machine Width (ft) x Crank Turns = Area Factor

EXAMPLE: 12.5 cm tool width x 80 turns = 1000

EXAMPLE: 41 ft tool width x 80 turns = 3280

· Application Rate kg/hectare (lb/ac): Divide weight factor by area factor to calculate application rate in kg/hectare (lb/acre).

Weight Factor ÷ Area Factor = Application Rate kg/hectare (lb/acre).

EXAMPLE: 62780.1 ÷ 1000 = 62.8 kg/hectare

EXAMPLE: 230584.2 ÷ 3280 = 70.3 lb/ac

13. If calculated application rate is above or below target rate:

NOTE: See your John Deere dealer for assistance, if desired.

• Verify transmission setting and meter settings are correct for the product in use.
• Recalibrate cart tire sensor. See AIR CART SET-UP MODE-CALIBRATE SENSORS in Operating Machine-Monitor Set-Up section.
• Recalibrate meter. See AIR CART SET-UP MODE-CALIBRATE METERS in Operating Machine-Setting Meter Rates section.

AG,OUO6023,1156 -19-21JUL00-7/8

• Verify that monitor is set-up properly.

AG,OUO6023,1156 -19-21JUL00-8/8
