Before and After Each Season

Lubricate each of the following points before each operating season and after each season when placing machine in storage. Apply oil or grease as indicated on the symbol.

AG,OUO6023,1188 -19-21JUL00-1/2

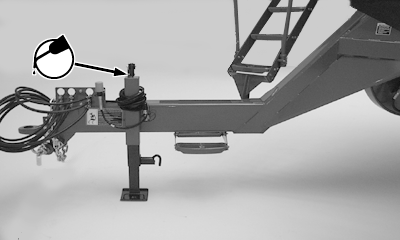

A48915

Tow-Between Hitch Jack

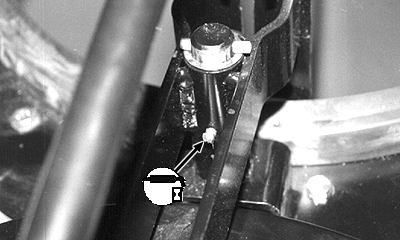

A40117B

Tank Lid Pivot-All

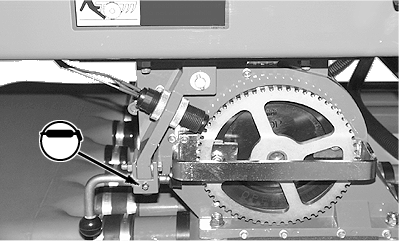

A48920

Meter Lock Levers-All

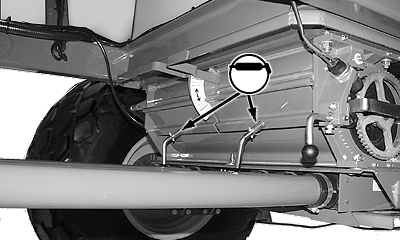

A49048

Cleanout Panel Levers-All

AG,OUO6023,1188 -19-21JUL00-2/2
