Replace Meter Drive Shear Pin

1. Shear pin is used to protect drive transmission from damage caused by loading meter cartridge with product when fan is not running. To prevent shearing pin, engage meter only when fan is running to avoid overload.

AG,OUO6023,1296 -19-30AUG00-1/2

IMPORTANT: Do not use any other hardware to replace factory specified shear pin (11m7082) or transmission could be damaged. See your John Deere dealer for correct repair parts.

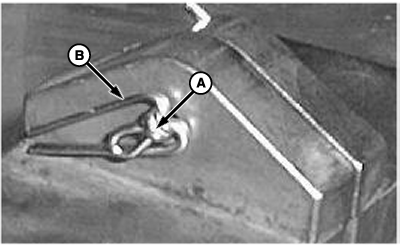

2. Insert 2.5 mm diameter cotter pin (B) through eye of 2.5 mm diameter cotter pin (A) and spread cotter pin (B) apart. Install cotter pins in shear blocks and spread cotter pin (A) apart as shown.

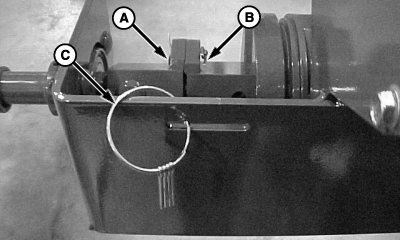

3. Extra cotter pins can be found on ring (C) on clutch plate as shown.

A-Cotter Pin
B-Cotter Pin
C-Ring

AG,OUO6023,1296 -19-30AUG00-2/2
