Determining Tractor Requirements

1. See TRACTOR HYDRAULIC SYSTEM REQUIREMENTS in Specifications section.

2. Install adapters if tractor does not have ISO hydraulic couplers. See your John Deere dealer.

RW5836

With Mechanical SCV Controls

N48100

With Electro/Hyd SCV Controls

AG,OUO6023,970 -19-21JUL00-1/3

IMPORTANT: Drain port back-pressure must be less than 689 kPa (6.89 bar) (100 psi) or fan motor seal will be damaged.

NOTE: If your John Deere tractor is not equipped with a low-pressure drain connection, order installation kit from your John Deere dealer. See LOW-PRESSURE DRAIN CONNECTION in this section for kit listing.

3. Tractor MUST be equipped with a low-pressure drain port (A) for connection of fan motor case drain. When operating with a John Deere 735 or 1810 Seeding Tool, a second low-pressure drain port is needed for connection of depth control relief circuit. Instead of a low-pressure drain, depth control bleed-off hose can be attached to an open SCV, if one is available. This SCV will need to be placed in "FLOAT" position when operating.


A-Low-Pressure Drain Port

RW55342

8000 Series Tractor

A42741

9000 Series Tractor

AG,OUO6023,970 -19-21JUL00-2/3

causym CAUTION: Make sure tractor master shield (A) is in place at all times, to prevent entanglement with rotating PTO shaft. Coming in contact with a rotating PTO shaft can cause severe injury or death.

4. Consult tractor operator's manual for specific adjustment procedures, tire inflation, wheel spacing, and ballast requirements.

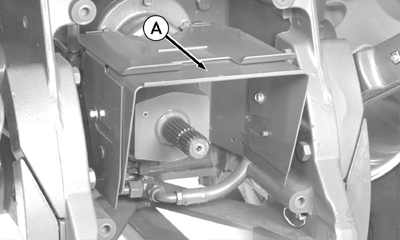

A-Tractor Master Shield

RW55317
